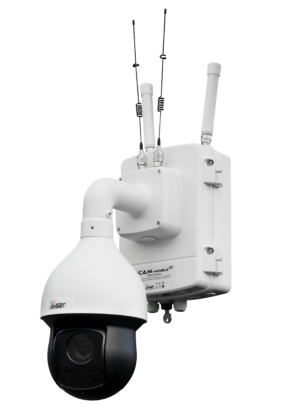

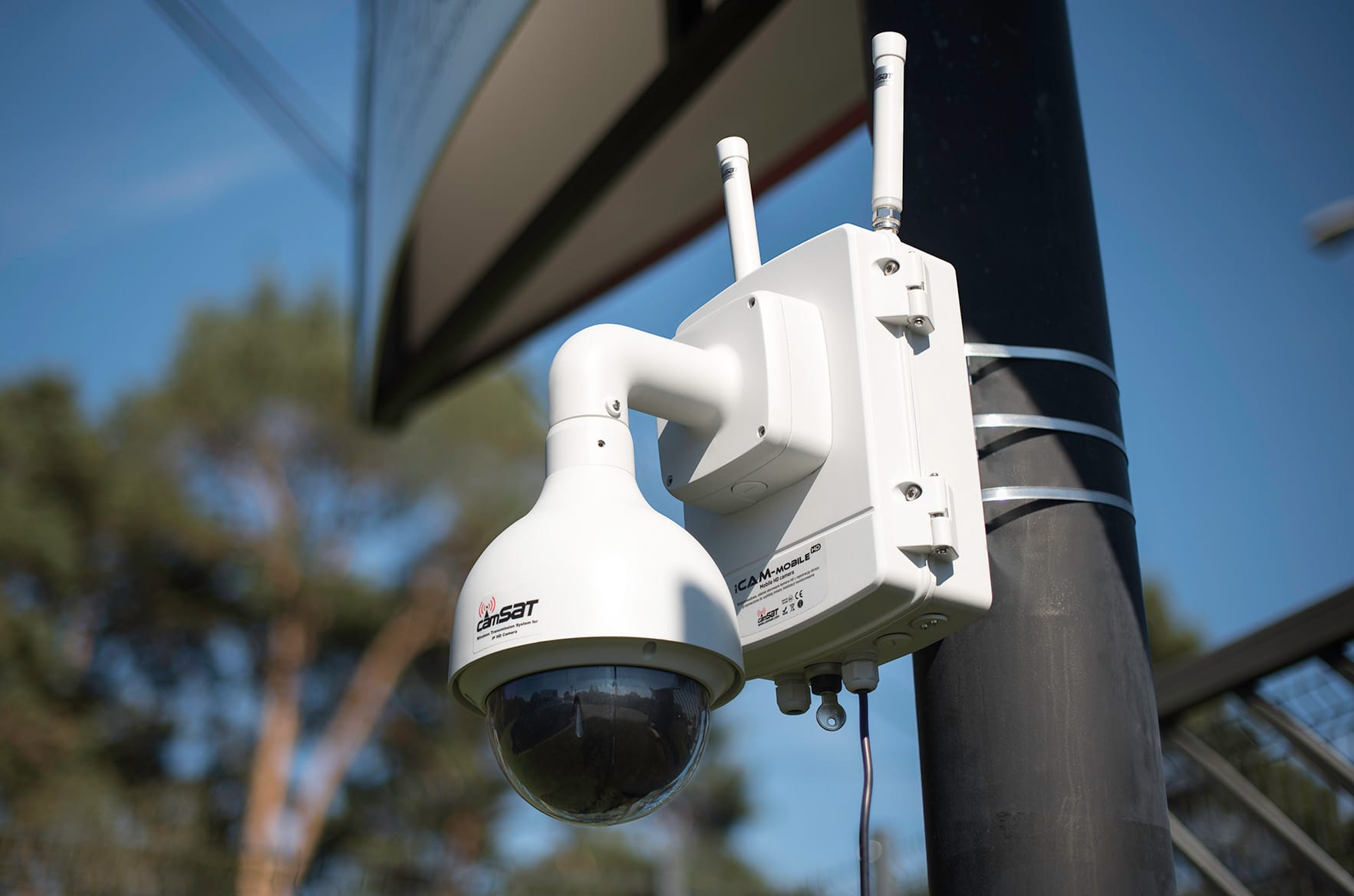

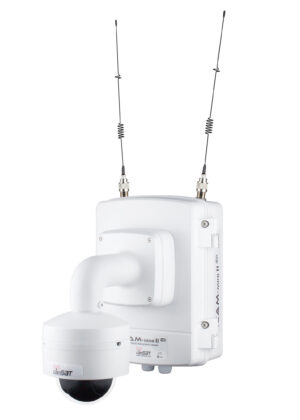

Series: iCAM-MobileHD II
A series of 4G/LTE mobile cameras with their own battery power, charged from any 230V street lamp
CAM-Analog2.0
Set for wireless video transmission from analog CVI/TVI/AHD cameras up to 2Mpix
CDS-6IP 3PoE – Radio bridge with PoE ports.
Wireless system for IP cameras with 3 PoE ports and 63000k Bitrate
iConstruction-CAM Duplex
Remote construction site supervision from any place in the world - observation 360° in range over 100m
caseCAM-PRO
Professional CCTV tactical suitcase with IP camera, LTE and battery for 16-45 days of continuous work.

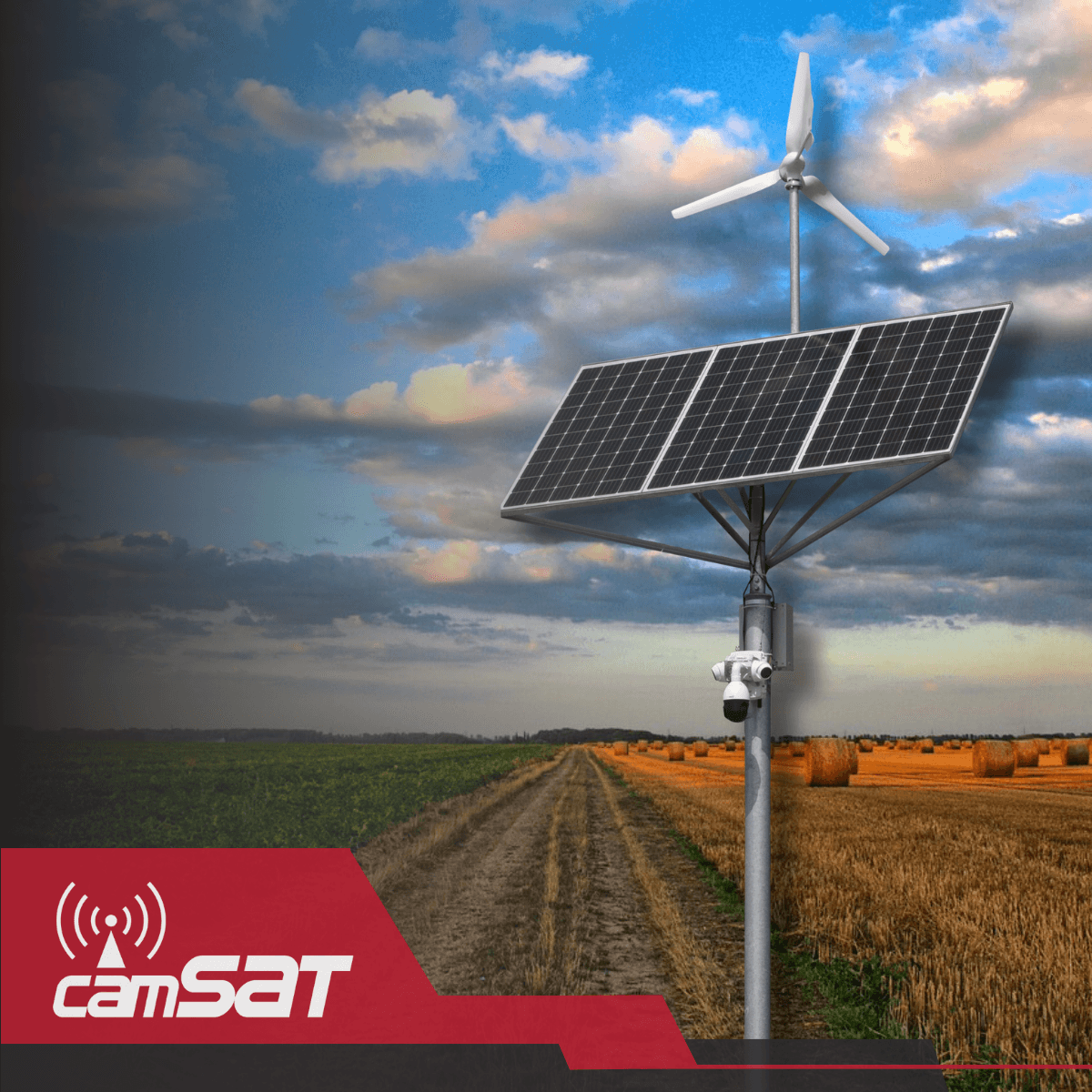

iCAM-Solar365 P50WT
A year-round solar power system with a wind turbine
X-CAM II Switch PoE+ 4L (IP65)
Hermetic PoE switch for IP cameras - 4x PoE+
OUR SOLUTIONS

Live view from construction sites
Remote monitoring of construction works throughout the country. Insight into the quality of work and timely implementation.

Mobile cameras for the army and special services
Mobile cameras for special orders and for difficult working conditions.

Mobile monitoring of cities and mass events
Urban monitoring without projects in a few days – Place Guards all over Poland appreciated the possibilities of mobile cameras from the iCAM series.

Wireless monitoring of elevators
Wireless system for video monitoring of any elevator – no cabling.

Monitoring of barges and floating platforms
Wireless image transmission from floating shoulder cameras.
WHAT WE DO
We implement all the most difficult to monitor objects, e.g. without power supply, without cabling, in the “far field”. There are no difficult tasks for our wireless engineers.
CAMSAT is a certainty of action
CAMSAT is a producer of wireless signal transmission systems from analog TVI, AHD, CVI, PAL cameras and digital IP cameras. Our radio devices work in unlicensed 5 GHz, 24GHz radio bands. Our assortment includes a wide range of products designed for signal transmission from CCTV cameras and professional TV cameras. We also manufacture innovative mobile cameras for city video monitoring and advanced wireless systems for special services.
24/7 technical support
Radio systems manufactured by CAMSAT make wireless transmission effective even in a highly disturbed industrial environment. We place great emphasis on quick and easy installation. Memorable – for our engineers there are no impossible CCTV installations.

CCTV wireless industrial television
We manufacture high-class wireless systems for camera radio connections with video recorders. If you need to send a signal from analog AHD, TVI, CVI cameras or IP cameras wirelessly, we have many solutions for you.

Mobile 4G cameras without power supply - completely wireless
We manufacture modern units for remote video monitoring of very distant objects. Thanks to our mobile cameras you will receive a live view from anywhere in the country.
Mobile cameras:
-
- * wireless
- * with batteries
- * with internal video recording for 90 days
- * autonomous and unmanned
- * without the help of an editor
- * run in a few minutes

Alternative power supplies for CCTV cameras
We manufacture systems for powering CCTV cameras ensuring 24-hour continuous video observation in places without access to “electricity”.
We use:
-
- * night power in traffic lights
- * special mobile batteries for working at -20 degrees Celsius
- * year-round solar farm and wind turbines
- * and other
CAMSAT NEWS
Subscribe to the newsletter and always receive first:
price lists,catalogs,information on the latest products, information on training in your area.
NEWS
CAMSAT Radio Devices – 3 YEARS WARRANTY
CAMSAT radio devices are designed for long-lasting reliability and performance. That’s why every device comes with a standard 3-year warranty, providing complete protection from the moment of purchase. Our goal is to provide you with equipment that operates flawlessly for years, along with support you can rely on. Here’s what our warranty offers:
Three years of peace of mind and security
CDS-6IP 3PoE – Radio bridge with PoE ports
- 3 PoE+ ports – power up to 3 IP cameras directly from the radio module
- 90W power capacity with a 48V/2A power supply
- 63 Mbps throughput – total bitrate of all video streams
- 2 km wireless range LOS (line-of-sight between antennas)


Wireless transmission system for IP cameras – 5.6 GHz radio bridge
- 2 LAN ports
- 2 km range LOS (line-of-sight)
- 20-60 Mbps bitrate – total bitrate for all transmitted cameras, depending on distance
- Powered by 12V, making it compatible with standard CCTV power supplies and backup power supplies with batteries
- Powered by 48V PoE passive
CDS-Lift IP - Wireless CCTV system for monitoring elevators and cranes
- 2 LAN ports – compatible with cameras up to 8MP resolution.
- Powered by 48V PoE
- Range of 250 meters
- Operates on 5.2 GHz and 5.8 GHz frequencies

Check out our other products
GlobalCAM4.5G-2PoE
4G / LTE outdoor industrial router for IP cameras with two PoE ports
- LTE/4G/3G – works with any SIM CARD from any European operator
- 2 PoE ports for powering the IP cameras directly from the radio unit
- Very easy and fast to start – it's enough to set up the two parameters
- Smooth video transmission – uses 100% of LTE technology and provides 150Mb/s download and 50MB/s upload
- Wi-Fi with a range of 50m for connection with Wi-Fi cameras
- Many power options – 12V DC, 48V DC, PoE24V
- IP65 – designed to outdoor work, with harsh weather conditions in mind
- Linux takes care of the reliability of the entire transmission
- Data transmission encryption, Firewall, access filtering, etc.
- Very strong omnidirectional LTE antennas
- 3 years of warranty with an option to extend to 5 years
CAM-Analog2.0
Set for wireless video transmission from analog CVI/TVI/AHD cameras up to 2Mpix
- Full HD for the price of PAL - we created CAM-Analog2.0 by adding FullHD to TCO-5807h
- TVI (TurboHD), CVI and AHD - compatible with every analog camera standard with a resolution of up to 2Mpix.
- Large wireless range - up to 500 meters of LOS video transmission range.
- 2 EU work channels working in the European 5.8 GHz band
- Additional 6 channels work available in other countries
- Analogue FM broadcast in real time
- Solid BNC video ports on the transmitter and receiver
- Waterproof design with IP66 protection
- Compatible with all analog cameras FullHD 2Mpix - 4in1, CVBS, AHD, CVI, TVI.
- Several sets on one installation - the possibility of running 2 sets side by side in Europe on 2 separate work channels
- One set transmits one video image, i.e. you need 3 CAM-Analog2.0 sets for 3 cameras
- CAM-Analog2.0 is a set containing transmitter and receiver
CDS-EasyIP eco
Easy to configure, wireless monitoring for all IP cameras
- An economical solution for simple CCTV installations in demanding conditions.
- Simple installation ‒ configuration without a computer and additional devices.
- 57Mbps transmission ‒ 100% data transmission over a distance of 2,500 meters, loss of 0.02% of frames with continuous transmission over a distance of 3,000 meters.
- 12 IP cameras at one link ‒ at a distance of up to 1000 meters, thanks to a transmission speed of 95.6Mbps
- 8 video bridges on one installation - it is possible to run up to 8 radio bridges side by side on 8 separate work channels
- One video bridge transmits many images from multiple cameras, i.e. you need only two CDS-EasyIP eco units to handle 8 cameras with switch
- CDS-EasyIP eco is a single radio unit. You need two units to create wireless bridge.
- One receiver can be paired with up to 4 transmitters and you can connect several cameras to each transmitter.
- Transmission of 16 cameras with one radio bridge - number of cameras depends on the sum of their bitrate and on the radio distance. The CAMSAT calculator and diagrams will help you to select the devices.
X-CAM II Switch PoE+ 4L (IP65)
Hermetic PoE switch for IP cameras - 4x PoE+
- Switch PoE for CCTV cameras
- Resistant to harsh weather conditions ‒ due to IP65 tightness class and wide operating temperature range (from -20°C to 55°C).
- Compatible with any IP camera ‒ with 802.3at and 802.3af standards, it works even with big PTZ cameras with IR.
- Optical fiber and PoE ports – device with four PoE + ports and a universal SC type fiber optic connector
- Large variety of power sources – available in many versions: directly from 100-230V AC, from 48V DC, and even from 12V DC.
- Comfortable and very quick installation ‒ thanks to cable tie fastenings directly to the pole or facade
- Modern shape and appearance – matching lanterns and modern structures
- Strong and efficient – 30W/Port
Technical Support CAMSAT
With over 20 years of experience, we design devices to be maximally intuitive, easy to use, and to fulfill the most important functionalities in the industry. We are at your service 24 hours a day, 7 days a week

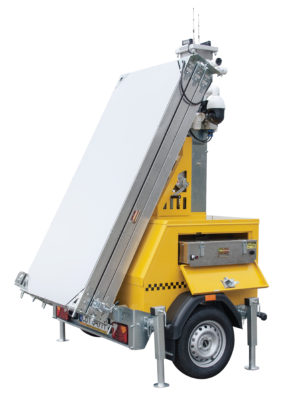

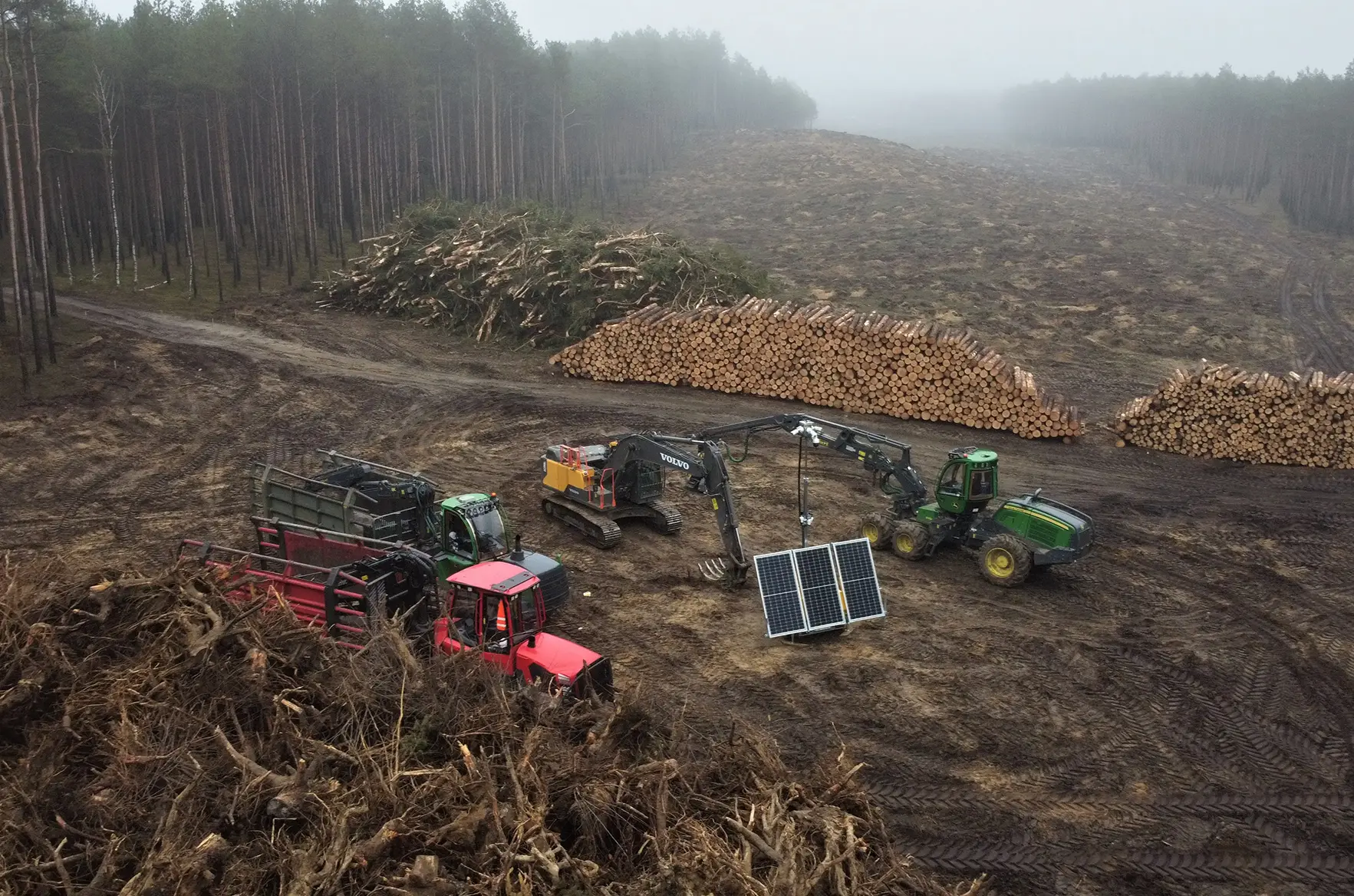

NEW for 2024 – Mobile Tower with Genset – iCAM-DefenderTower PowerMAX
The latest version of our mobile tower, the iCAM-DefenderTower PowerMAX, features an advanced 3500W genset that provides autonomous power in all conditions. The genset automatically charges the batteries, activating when voltage drops, ensuring uninterrupted operation even in extreme temperatures down to -30°C.
Power and reliability in all conditions

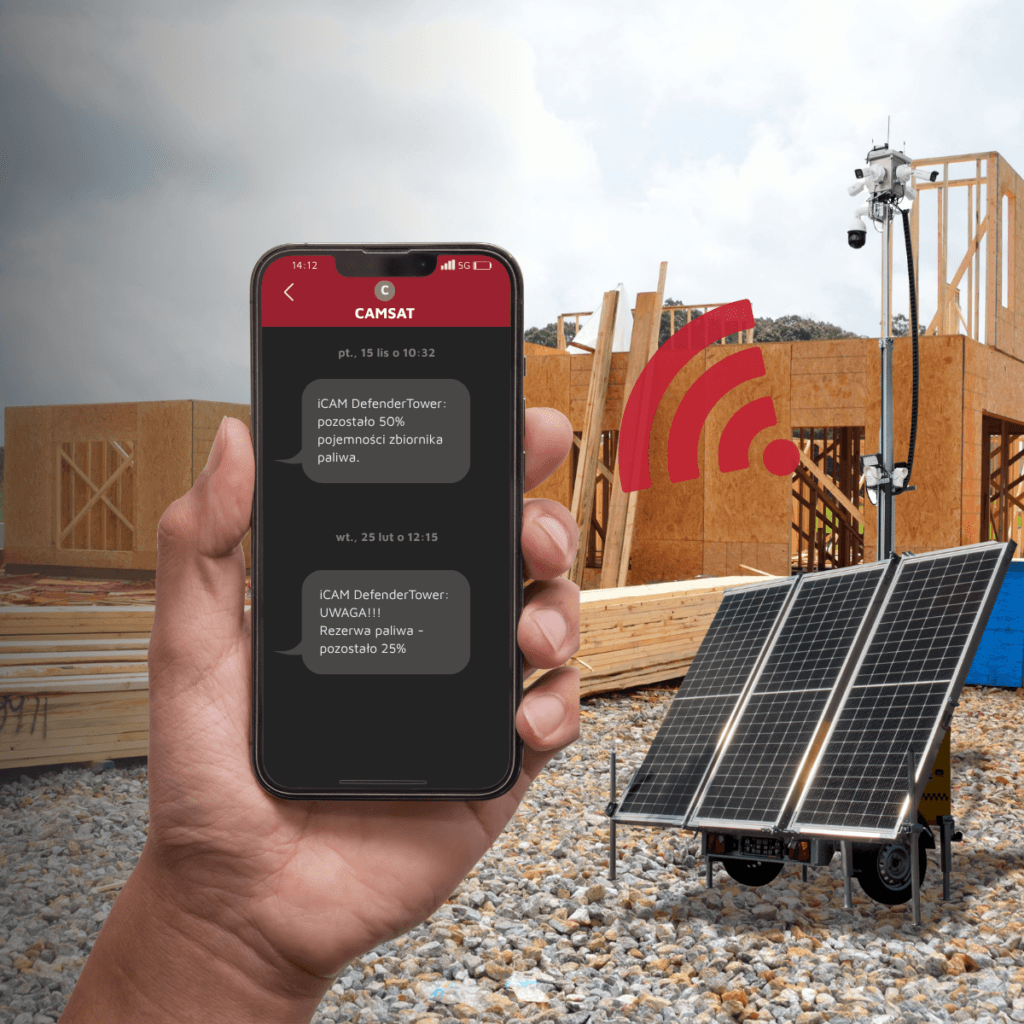

The genset control app allows for manual start and stop operations and sends notifications, including fuel reserve alerts at 30% and 10% levels.

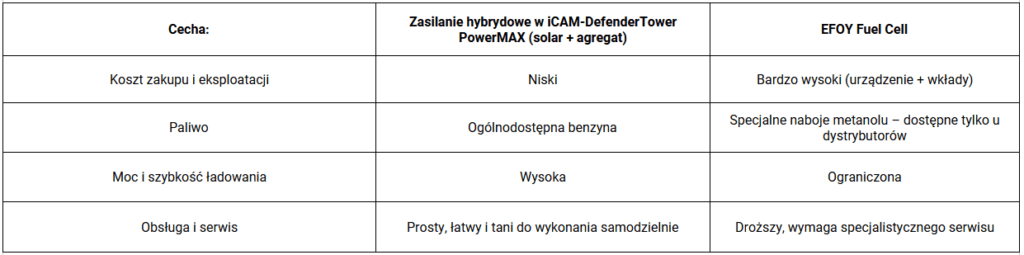

During the winter season, combined with 1350W solar panels, no additional interventions are needed apart from refueling. The fuel consumption is 0.8L/h. From March to November, the tower operates entirely on solar power. During the remaining months, the genset supports the system, starting once a week depending on weather conditions.
A specialized fuel tank with a capacity of 50 or 100 liters ensures long-term autonomous operation, minimizing the need for frequent refueling.
What makes the iCAM-DefenderTower PowerMAX stand out?
- Stable Design with Low Center of Gravity and Wide Wheelbase – ensures safety and stability during movement, even on rough terrain.
- DMC750 Certified Chassis – allows the tower to be easily transported on public roads.
- Anti-Theft Retractable Drawbar – prevents unauthorized access and theft.
- iCAM-OSD System – real-time display of key parameters such as battery status and power levels, directly on the video feed of IP camera, allowing live monitoring of 12 critical parameters.
- iCAM-ECO Energy Saving Mode – conserves power by shutting down 95% of electronics in critical battery conditions, significantly extending operational time without external power sources.
- Integrated Security Features – includes PIR motion sensors, megaphone, and LED lights, offering protection not only for the monitored area but also for the tower itself.
- Comprehensive Surveillance with Five Cameras – includes a PTZ camera for 360-degree coverage, providing perimeter security up to 200 meters and enabling efficient monitoring of large areas.

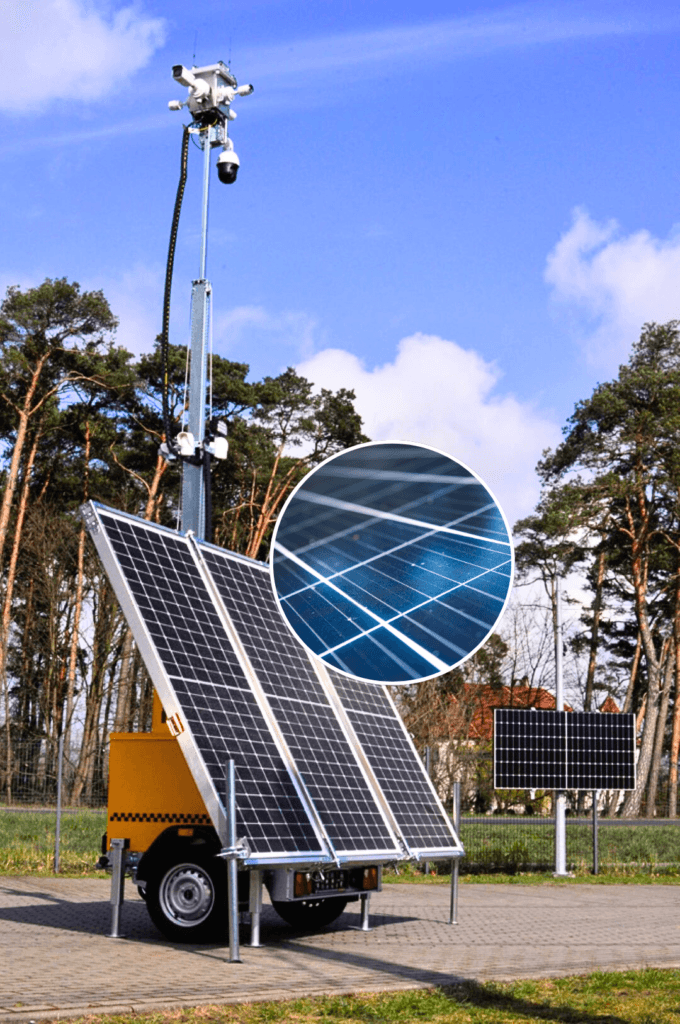

- Year-Round Solar Power Supply of 1350W – equipped with three foldable solar panels, each 450W, with protective glass to prevent damage during transport. Independent supports ensure stability and resistance to strong winds.
- Multiple Power Supply Options – can be powered by 230V mains, integrated genset, or up to 8 batteries with a capacity of 220Ah each, providing operational flexibility.
These advanced features and robust security solutions make the iCAM-DefenderTower PowerMAX a top choice for mobile surveillance and remote security. Discover the full range of capabilities of our mobile towers today.
Ease of Use and Full Control with iCAM-DefenderTower PowerMAX
Additionally, every tower purchase includes a full-day training session, allowing users to quickly and effectively learn how to utilize all the device’s features. We also offer 24/7 technical support, providing constant assistance and solutions to any issues, which enhances user comfort and safety. With these conveniences, the iCAM-DefenderTower is not only a sophisticated monitoring tool but also an easy-to-use solution for any user.
Technical Support CAMSAT
With over 20 years of experience, we design devices to be maximally intuitive, easy to use, and to fulfill the most important functionalities in the industry. We are at your service 24 hours a day, 7 days a week

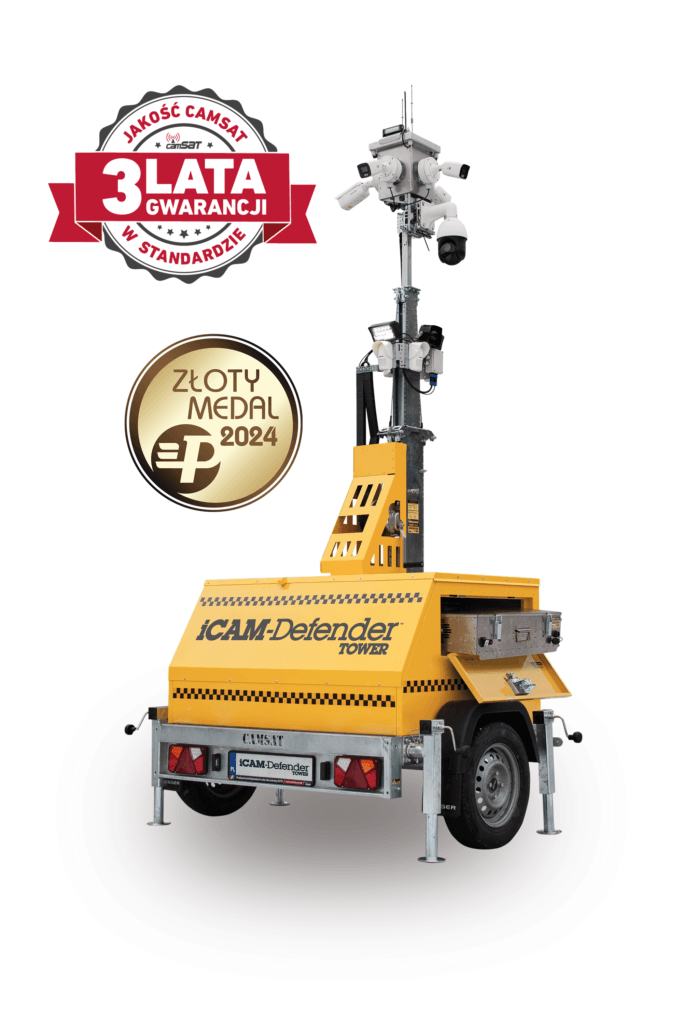

3 YEARS WARRANTY as standard – CAMSAT rapid deployment towers
Our CAMSAT rapid deployment towers are designed for maximum reliability and durability, which is why each product comes with a standard 3-year warranty. This ensures complete protection for our customers from day one, allowing them to focus on efficient operations without worrying about equipment issues. Here are some key benefits provided by our warranty:
Comprehensive protection for years
Option to extend the warranty up to 5 years

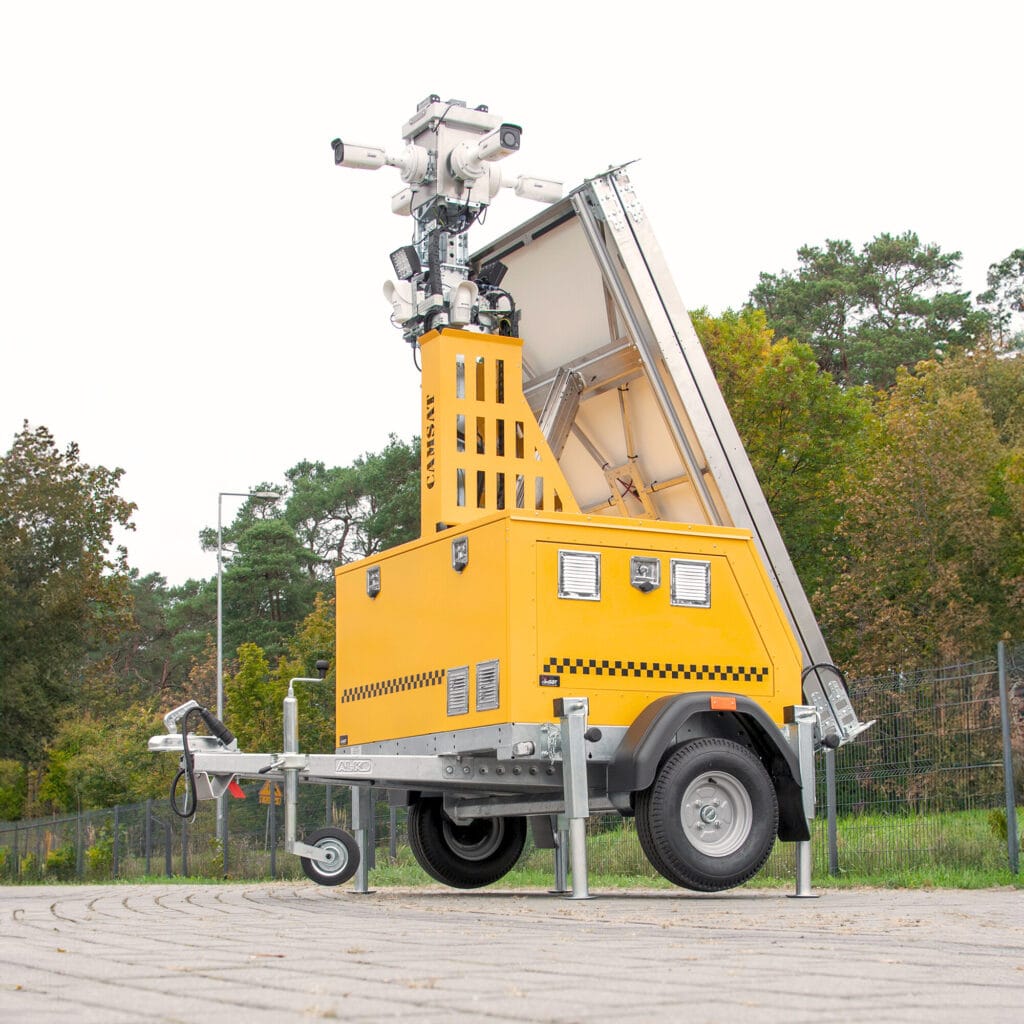

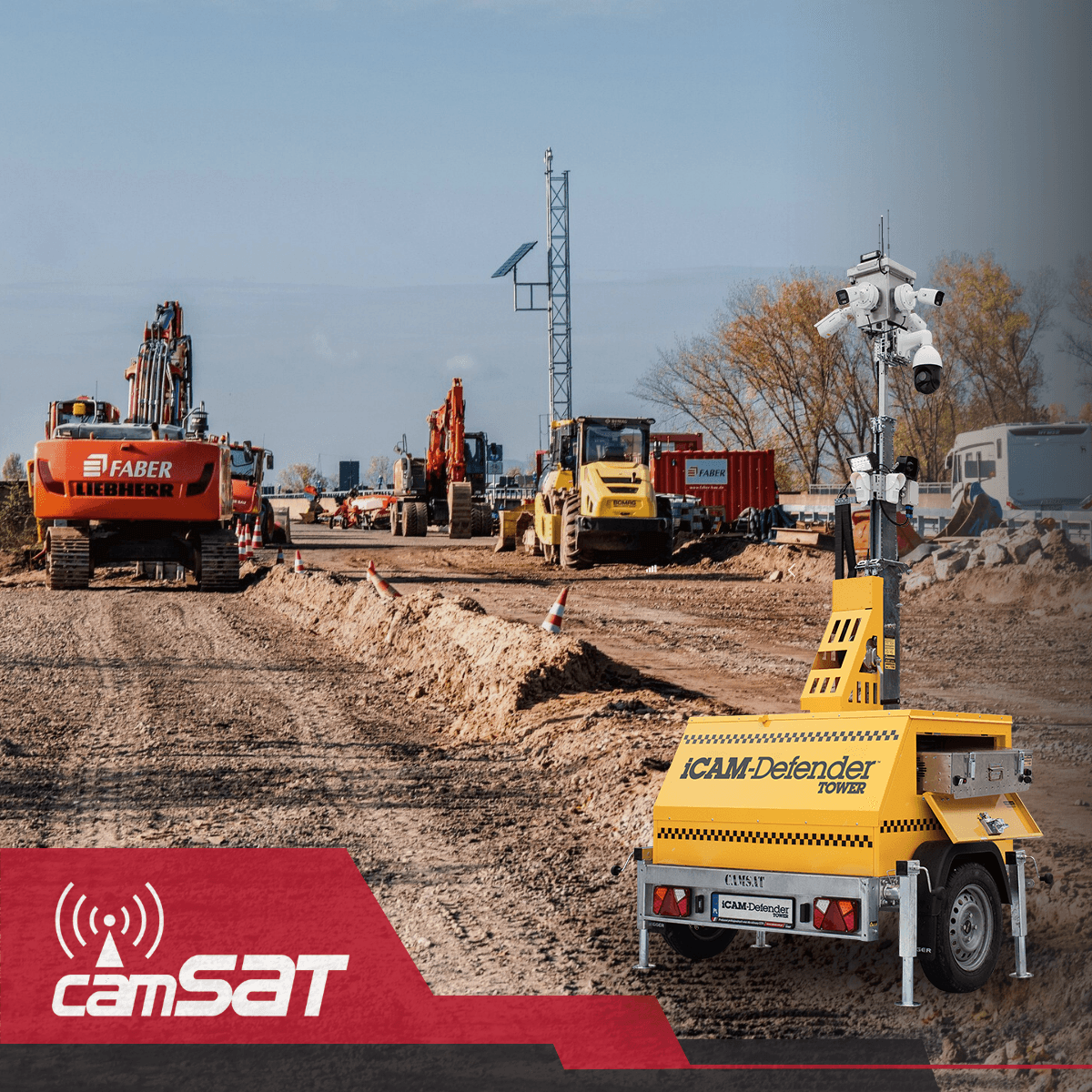

iCAM-DefenderTower – Lightweight Rapid Deployment Mobile CCTV Tower
- Low center of gravity and wide wheelbase – provide stability and safety during transportation, even in difficult terrain.
- Chassis with DMC750 certification – allows for road travel.
- Retractable/telescopic drawbar – prevents theft and unauthorized access.
- iCAM-OSD – displays key tower parameters, battery status, and power levels as text overlays on two IP camera feeds, enabling the operator to monitor 12 essential parameters in real-time.
- Year-round solar power supply with a capacity of 1350 W – ensures uninterrupted operation of the device throughout the year, regardless of weather conditions.


Rapid deployment CCTV monitoring towers in the PRO version with year-round 2.4kW solar-wind power supply
- Year-round solar power supply with a capacity of 2000W
- 0.4kW wind turbine – vertical operation with shock absorption, eliminating mast vibrations.
- Mobile controller for quick replacement of all electronics between towers – you only send the controller for servicing, not the entire tower, significantly reducing operational costs and travel expenses.
- SafeStar, Kronos – 100% compatibility with any security software.
- Tool-free, rapid maintenance – mechanically slidable cameras for quick replacement between towers, slidable solar panels and turbine without the use of tools – plug-in installation secured with a padlock/lock.
Check out our other products

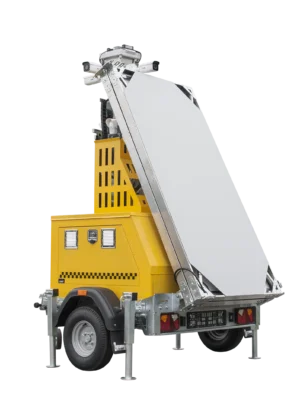

iCAM-DefenderTower – Lightweight Rapid Deployment Mobile CCTV Tower
NEW 2024 - Rapid deployment CCTV tower with own power supply all year round
- Continuous solar power with up to 1.35 kW capacity allows uninterrupted operation throughout the year, regardless of weather conditions.
- Road-approved wheels equipped with wide wheelbase - over 150cm, ideal for rough terrain, steep inclines, and rapid, safe mobility.
- Retractable / Sliding drawbar guards against towing - patented / reserved under numbers 015056994 and CAMSAT-3484-SP.
- Mobile controller enables quick exchange of entire electronics between towers. Only the controller needs to be sent for servicing, significantly reducing maintenance costs and trips.
- iCAM-OSD - Power parameters on camera image displays key tower, battery, and power parameters as text on the image of two IP cameras. Operator can observe 12 key parameters live.
- iCAM-ECO in critical battery conditions, conserves energy by disabling 95% of electronics, significantly extending power outage protection time.
- Tower position change detection in 3 planes protects the tower even after complete battery discharge and still notifies about an alarm
- SafeStar, Kronos ensures 100% compatibility with any security software.
- Wireless PIR sensors with a range of 1000m automatic PTZ camera approach to detection area.
- Megaphone sound warnings automatically generated upon intrusion detection, playing MP3 file from megaphone with over 120dB.
- Live audio warnings directly from remote operator.
- Blue strobe light of the deterrent type POLICE that attracts more attention than blaring alarms
- Green halogen lights 2x 110W modernly illuminating the area and highlight human contours
- 360-degree protection PIR sensors with 12m range around the tower.
- Power according to programmed priorities and switching order:
- From 230V AC for fast charging, and upon 230V outage, seamless transition to solar power.
- Solar power with up to 3x460W capacity.
- Battery-powered space for 8 batteries of 200-220Ah each.
- Fuel cells automatically charge batteries for up to 30 days on one tank.
- Analytics cameras 4-8Mpix with color night vision, AI, WizSense, and Deep Learning as standard.
- Local video storage for 90 days and remote via Internet on NVR connected to the network.
- Customizable size and configuration tower versions with the ability to mount own cameras and accessories in any configuration and equipment.
iCAM-Tower PRO – Mobile CCTV tower
Rapid deployment CCTV monitoring towers in the PRO version with year-round 2.4kW solar-wind power supply - Polish manufacturer
- Year-round solar power supply with a capacity of up to 2 kW
- 0.4kW wind turbine - vertical operation with mast vibration damping
- On wheels - wide wheelbase, ideal for uneven terrain, high tilt angles, and fast, safe movement
- Rapid deployment controller for quick replacement of all electronics between towers - send only the controller for service, significantly reducing operating costs and trips
- iCAM-OSD - displays the most important tower and power supply parameters on the image of two IP cameras - 12 key battery, power plant, and alarm parameters
- iCAM-ECO which saves energy by turning off 95% of electronics in critical battery states, significantly extending protection with one active camera, microphone, and full SSWiN
- Tower position change detection in 3 planes protects the tower even after complete battery discharge and still notifies about an alarm
- SafeStar, Kronos - 100% compatibility with any security software
- Tool-free, quick operation - mechanically inserted cameras for quick replacement between towers, solar and wind turbines without the use of keys - insert and secure with a lock.
- Wireless PIR sensors with a range of 1000m - automatic PTZ camera approach to the detection area
- Automatically generated audio warnings after intrusion detection - MP3 file played from a megaphone with a volume of over 120dB
- Live audio warnings directly from a remote operator
- Blue strobe light of the deterrent type POLICE that attracts more attention than blaring alarms
- Green halogen lights 2x 110W modernly illuminating the area
- 360 protection with PIR sensors with a range of 12m around the tower
- Power supply according to programmed priorities and switching order :
- From 230V - fast charging, and after 230V failure, seamless switching to solar power
- Solar-wind power with a capacity of up to 2 kW + 0.4 kW
- Fuel cells automatically charging batteries for up to 30 days on one tank
- Battery - space for 4 batteries with a capacity of 200-220Ah
- Intelligent IP cameras 4Mpix with color image at night, AI, WizSense, and Deep Learning
- Local video recording for 90 days
- Remote video recording over the Internet on an NVR connected to the network..
- For the CCTV industry tower versions with the possibility of mounting your cameras and accessories
iCAM-Solar365 PRO Triplex T2000W – Graphene Solar Power for Mobile Towers
Year-round solar power supply for mobile towers with a power of 2kW (2000W) with a Graphene coating
- Year-round solar power supply - for all types of mobile towers,
- 10.5 m2 - the largest in Europe - a mobile solar system for CCTV towers with a power of up to 2 kW and a surface area of 10.5 m2..
- Power over 2000W - very high energy efficiency in an easy, foldable design
- Own stabilizing supports provide resistance to very strong gusts of wind
- Mobile, detachable - tool-free and quick disassembly/assembly on the tower by sliding into sockets
- Foldable, compact design - operated by one person
- Glass protection against stones from car wheels during transport
- Protection of edges around the panels through a 70mm crush zone and a thick frame
- Compatible with any AGM batteries and mobile CCTV towers
- Any installation voltage - from 12V to 48V DC
- Compatible with a wind turbine
- Two or three panels depending on the current season - each panel is quickly removable, allowing you to decide on the size of the power plant on a given object.
Wind turbine for rapid deployment CCTV towers
Hybrid power plant with a capacity of over 0.4kW
- Perfect for working between buildings - already works with gusts of 1.3m/s from any direction
- Power over 400W - very high energy efficiency
- Rapid deployment/strong> - tool-free and quick disassembly / assembly on the tower by sliding into the sockets
- Lowered for transport reducing the transport height of the tower
- Inverted leading edge - safe for the environment
- More power on request
- Compatible with any AGM batteries and rapid deployment CCTV towers
- Any installation voltage – from 12V to 48V DC
24/7 Technical Support CAMSAT
With over 20 years of experience, we design devices to be maximally intuitive, easy to use, and to fulfill the most important functionalities in the industry. We are at your service 24 hours a day, 7 days a week
NEW 2024 – iCAM-DefenderTower – Lightweight Rapid Deployment Mobile CCTV Tower
The latest mobile CCTV tower is the perfect solution for construction and security companies. With a low center of gravity and wide wheelbase, it is easy to move even across the most challenging terrains. We offer advanced technologies that ensure reliable and efficient monitoring.
What makes the iCAM-DefenderTower special?
- Low center of gravity and wide wheelbase – ensures stability and safety during movement, even on difficult terrain.
- DMC750 approved chassis – allows road travel.
- Retractable drawbar – prevents theft and unauthorized access.
- iCAM-OSD – displays key parameters of the tower, batteries, and power in text form on two IP camera images, enabling live monitoring of 12 key parameters.
- iCAM-ECO – conserves energy by shutting down 95% of electronics during critical battery states, significantly extending protection time without power.
- PIR sensors, megaphone, LEDs – these accessories not only protect the site but also the tower itself, providing comprehensive protection.
- 5 cameras, including a PTZ camera – provide 200 meters of perimeter protection, allowing extensive surveillance and monitoring of large areas.
- 2000W year-round solar power – giant foldable solar panels for transport with glass protection (protection against stones during transport) – three panels, each with 660W capacity, independent solar supports making the tower very stable and resistant to strong winds.
- Various power options – can be powered by 230V mains, generator, or batteries. The tower has space for 8 batteries, each with a capacity of 220Ah.
These advanced features and accessories make the iCAM-DefenderTower a unique, versatile, and reliable solution for remote monitoring and protection. These are just some of the many capabilities of our mobile towers.
Easy Operation and Full Control
Additionally, each tower purchase includes a full-day training session, ensuring users can quickly and effectively learn to use all device features. Furthermore, we offer 24/7 technical support, providing constant assistance and problem resolution, enhancing user comfort and safety. These conveniences make the iCAM-DefenderTower not only an advanced monitoring tool but also an easy-to-use solution for every user.
24/7 Technical Support CAMSAT
With over 20 years of experience, we design devices to be maximally intuitive, easy to use, and to fulfill the most important functionalities in the industry. We are at your service 24 hours a day, 7 days a week
What Camera for a Construction Crane?
Choosing the right camera for a construction crane can significantly enhance safety and efficiency on a construction site. The iConstruction-CAM TRUCK II is an advanced hook-mounted camera system designed specifically for construction and industrial operations. Read on to learn how it can benefit your project and find out which camera is best for construction use.
What is iConstruction-CAM TRUCK II?
Benefits of Using Cameras on Construction Cranes
Improved Visibility for the Operator
One of the main advantages of iConstruction-CAM TRUCK II is its ability to provide a clear, realistic view from long distances. Even when obstacles like buildings or walls are in the way, operators can safely monitor and control lifting operations. With 4G/LTE and WiFi connectivity, the image is displayed on the operator’s cabin monitor, allowing for greater accuracy and safety.
Enhanced Managerial Oversight
The system’s online capabilities allow managers to remotely oversee construction site activities in real-time. This feature enables immediate intervention and advice, ensuring adherence to safety protocols and minimizing accident risks. Managers can supervise operations from anywhere, providing an additional layer of safety and control.
Event Recording and Review
iConstruction-CAM TRUCK II continuously records activities and stores footage for up to 14 days. This feature is invaluable for post-event analysis and training purposes. It ensures compliance with safety protocols and provides a record for reviewing incidents and improving future safety measures.
Promoting Safety
Technical Aspects of iConstruction-CAM TRUCK II
4G/LTE and WiFi Connectivity
iConstruction-CAM TRUCK II offers advanced connectivity options, including 4G/LTE and WiFi. This ensures that the camera’s image is transmitted in real-time to the operator’s cabin monitor, providing reliability and high-quality transmission regardless of site conditions..
Battery Power Supply
The camera can operate on battery power, allowing it to work for up to 72 hours without being connected to a permanent power source. This provides operational flexibility and independence.
Device Installation
The device can be mounted in two ways:
- Strong magnets allow quick and easy attachment to metal surfaces, ensuring stability and durability.
- It can also be permanently screwed in place, providing additional stability in demanding conditions.
What camera for a construction crane to buy? Frequently asked questions:
iConstruction-CAM TRUCK II is the best camera for a construction crane, offering advanced features and high image quality, enhancing safety and efficiency.
The construction crane operator can receive the image on a monitor mounted in the cabin. Advanced technology allows the image to be transmitted via both WiFi and 4G/LTE networks, ensuring reliability and high-quality transmission regardless of site conditions.
iConstruction-CAM TRUCK II stores recordings for up to 14 days, which is useful for post-event analysis and training purposes.
The system improves operator visibility, enhances managerial oversight, and provides continuous event recording, all contributing to a safer and more efficient working environment.
The camera provides a clear view of the hook from long distances, even when obstacles are in the way, allowing operators to safely monitor and control lifting operations.
Yes, the device can operate on battery power, providing up to 72 hours of operation without the need for a permanent power source.
Yes, the system’s online capabilities allow managers to oversee construction site activities in real-time from anywhere, enabling immediate intervention and advice.
iConstruction-CAM TRUCK II is the best camera for a construction crane, offering advanced features and high image quality, enhancing safety and efficiency.
See other products dedicated to construction sites
iCAM-DefenderTower – Lightweight Rapid Deployment Mobile CCTV Tower
NEW 2024 - Rapid deployment CCTV tower with own power supply all year round
- Continuous solar power with up to 1.35 kW capacity allows uninterrupted operation throughout the year, regardless of weather conditions.
- Road-approved wheels equipped with wide wheelbase - over 150cm, ideal for rough terrain, steep inclines, and rapid, safe mobility.
- Retractable / Sliding drawbar guards against towing - patented / reserved under numbers 015056994 and CAMSAT-3484-SP.
- Mobile controller enables quick exchange of entire electronics between towers. Only the controller needs to be sent for servicing, significantly reducing maintenance costs and trips.
- iCAM-OSD - Power parameters on camera image displays key tower, battery, and power parameters as text on the image of two IP cameras. Operator can observe 12 key parameters live.
- iCAM-ECO in critical battery conditions, conserves energy by disabling 95% of electronics, significantly extending power outage protection time.
- Tower position change detection in 3 planes protects the tower even after complete battery discharge and still notifies about an alarm
- SafeStar, Kronos ensures 100% compatibility with any security software.
- Wireless PIR sensors with a range of 1000m automatic PTZ camera approach to detection area.
- Megaphone sound warnings automatically generated upon intrusion detection, playing MP3 file from megaphone with over 120dB.
- Live audio warnings directly from remote operator.
- Blue strobe light of the deterrent type POLICE that attracts more attention than blaring alarms
- Green halogen lights 2x 110W modernly illuminating the area and highlight human contours
- 360-degree protection PIR sensors with 12m range around the tower.
- Power according to programmed priorities and switching order:
- From 230V AC for fast charging, and upon 230V outage, seamless transition to solar power.
- Solar power with up to 3x460W capacity.
- Battery-powered space for 8 batteries of 200-220Ah each.
- Fuel cells automatically charge batteries for up to 30 days on one tank.
- Analytics cameras 4-8Mpix with color night vision, AI, WizSense, and Deep Learning as standard.
- Local video storage for 90 days and remote via Internet on NVR connected to the network.
- Customizable size and configuration tower versions with the ability to mount own cameras and accessories in any configuration and equipment.
iConstruction-CAM Duplex
Remote construction site supervision from any place in the world - observation 360° in range over 100m
- LTE camera with limitless range – thanks to 4G/LTE technology it is possible to view a video online from anywhere, via Internet
- PTZ 360 and optical zoom in 100m range allows checking every corner on a construction site
- Side cameras for fixed wide-angle monitoring
- Smooth HD video and a PTZ control – the system transmits a smooth HD video and allows to control PTZ remotely with minimal delay via 4G/LTE GSM
- Livestreaming on a computer, smartphone, and TV in your office – you can watch a video from the cameras set up all over the country on any computer, smartphone, NVR recorder or HDMI receiver - iCAM-TVRec.
- Automatic images archiving – up to 10 days back, thanks to built-in memory
- Lightning-fast deploying – installation is trivial thanks to a special mechanical socket; removal is secured by a padlock
- Vandal-resistant construction made from duralumin; its tightness class is IP66.
iConstruction-CAM x25 – camera for construction site
Remote construction site supervision from any place in the world - observation 360° in range over 200m
- LTE camera with limitless range – thanks to 4G/LTE technology it is possible to view a video online from anywhere, via Internet
- PTZ 360 and optical zoom in 100m range allows checking every corner on a construction site
- Smooth HD video and a PTZ controls – the system transmits a smooth HD video and allows to control PTZ remotely with minimal delay via 4G/LTE GSM
- Livestreaming on a computer, smartphone, and TV in your office – you can watch a video from the cameras set up all over the country on any computer, smartphone, NVR recorder or HDMI receiver – iCAM-TVRec.
- Automatic images archiving – up to 10 days back, thanks to built-in memory
iConstruction-CAM TRUCK II
Magnetic, wireless camera for construction cranes and heavy construction vehicles 4G/LTE
- 100% wireless - 4G/LTE transmission of HD 25fps video live to any place in the world
- WiFi - for configuring the device, and for local download of multiple recordings and simultaneously
- Very high video resolution 2560×1440pix - it's twice as HD
- 14 days of recording in the camera and possibility to use any recorder from CCTV cameras via the Internet, e.g. in the office, in the server room
- 16 IP cameras wirelessly - transmits signals from up to 16 IP cameras
- 12V and 24V power supply with protection against deep battery discharge in the vehicle
- Optional magnetic mounts - very strong magnets for "sticking" the camera to any steel surface
- Very strong construction and IP66
- Optional batteries magnet mounted or bolted to the vehicle
- EXAMPLES OF INSTALLATIONS:
- to the crane hook
- to the container
- on the roof or on the side of the vehicle
- to the arm of the excavator
- on the crane...
- SECURE:
- employees and immediate surroundings
- against fuel theft and devastation
- live view of the work progress
- monitors work time and report vehicle engine off/on (via email / SMS)
- at night, park other construction vehicles around, and monitor them all
- protects the rear of semi-trailers...
24/7 Technical Support CAMSAT
With over 20 years of experience, we design devices to be maximally intuitive, easy to use, and to fulfill the most important functionalities in the industry. We are at your service 24 hours a day, 7 days a week
CAMSAT iCAM Cameras – Safety on the Roads
The mobile monitoring points iCAM by CAMSAT have become a helpful tool for traffic law enforcement agencies and the improvement of road safety. Utilizing this modern technology, officers can monitor traffic efficiently and effectively.
Representatives of the Polish Police appreciate the iCAM devices
The recordings obtained from the iCAM device allow for real-time monitoring of drivers’ behavior and responding to any traffic violations. Mobile monitoring points enable the identification of vehicles exceeding speed limits, disregarding traffic signals, or committing other infractions on the road.
iCAM cameras facilitate swift identification of traffic violations, contributing to the effective enforcement of the law. They support the work of officers by allowing precise recording of offenses.
“This is a device used by police officers to ensure comprehensive safety. Such a camera system can be installed practically anywhere, e.g., on the roof of a car, a building, or a pole. The Ciechanów police once again utilized this device, this time to ensure the safety of vulnerable road users.”
Purpose? Increasing awareness among road users.
Monitoring activities using iCAM cameras contribute to increasing awareness among traffic participants. Drivers become more cautious, knowing that they are being observed by these devices. This operates preventively and results in better compliance with traffic regulations.
iCAM cameras from CAMSAT work preventively, acting as eyes on the road that won’t miss any traffic violations. Drivers, aware of the presence of these devices, are more inclined to adhere to traffic rules because they realize that their behavior is being monitored and documented. This, in turn, translates into a reduction in the risk of collisions, accidents, and other road incidents.
As a result, heightened awareness among traffic participants leads to more courteous behavior on the road, contributing to an overall improvement in safety. Drivers become more responsible, adhere to speed limits, respond to road signs and traffic lights with greater attention, all of which contribute to ensuring the smooth flow and safety of traffic on our roads. Thanks to iCAM cameras, streets become more user-friendly for all traffic participants, bringing benefits to society as a whole.
“We definitely want to continue using this device in the future. Our goal is not to penalize as many drivers, cyclists, or pedestrians as possible, but to alert them to the importance of safe behavior on the road. Certainly, information conveyed through the media also has a preventive effect” says Jolanta Bym from the Ciechanów police department in a conversation with ciechanowinaczej.pl.
Among other uses, the Polish Police utilize iCAM-MobileHD II devices, which is an advanced mobile video monitoring system with the capability of power supply and charging from a 230V AC streetlight. This exceptional device offers local video recording for 30 days and the transmission of recordings over the Internet to the monitoring center. It features a built-in 28Ah battery, allowing it to operate for 12-16 hours, even with a 20W camera. With automatic battery charging from a 230V power source and a very fast charging process (up to 6 hours), iCAM-MobileHD II ensures uninterrupted operation.
iCAM-MobileHD II – Link to product
iCAM-Magnetic STAND – Link to product
Source:
1. https://ciechanowinaczej.pl/artykul/icam-jeszcze-zagosci/1471315
2.https://kozienice24.pl/policjanci-z-kozienic-przeprowadzili-dzialania-z-uzyciem-urzadzenia-monitorujacego-icam/
3.https://www.eostroleka.pl/akcja-nurd-na-ulicach-ostroleki-przed-ta-policyjna-kamera-nic-sie-nie-ukryje-zdjecia,art
CAMSAT rapid deployment cameras to improve road safety in the Police in Radom (Poland).
Police with iCAM-Mobile cameras
iCAM-MobileHD II - rapid deployment monitoring system for improved road safety
During the action, police officers used iCAM-MobileHD II cameras to record live offences committed by pedestrians, cyclists and vehicle drivers. As a result, it was possible to identify 4 pedestrians who did not obey the traffic lights at the pedestrian crossing indicating a red light. All of them were fined 200 PLN. It also turned out that one of those identified, a 75-year-old man, a resident of Radom, was wanted by the court.
The iCAM-MobileHD II also helped to apprehend two drivers who had committed offences endangering the safety of pedestrians. The first driver, a 47-year-old woman, did not give way to a pedestrian in the crosswalk and was fined 1 500 PLN and 15 penalty points. The second driver, a 28-year-old man overtook another vehicle directly on a pedestrian crossing and was found not to have driving privileges.
The aim of the actions taken by the Radom traffic police is to improve the safety of pedestrians and raise the awareness of road traffic participants of the consequences of their actions. iCAM-MobileHD II is an indispensable tool in this case, which helps monitor the situation on the road and increases the effectiveness of the actions of law enforcement services.
MAZOVIA POLICE
Articles on the effectiveness of CAMSAT's iCAM-Mobile cameras
Warszawa.naszemiasto.pl about the performance of the iCAM-MobileHD II rapid deployment cameras: https://warszawa.naszemiasto.pl/policja-na-mazowszu-obserwowala-przechodniow-przez-kamere/ar/c15-9230247
Radom.naszemiasto.pl wrote about the fines issued: https://radom.naszemiasto.pl/radomska-policja-pracuje-z-pomoca-systemu-monitorujacego/ar/c1-9230145
eska.pl: https://www.eska.pl/radom/jak-wygladaly-ostatnie-dzialania-nurd-w-radomiu-aa-zNfv-WUSw-WDXo.html
All photos and materials are from public material on:
- https://radom.naszemiasto.pl/radomska-policja-pracuje-z-pomoca-systemu-monitorujacego/ar/c1-9230145
- https://mazowiecka.policja.gov.pl/ra/dzialania-policji/aktualnosci/76452,Policyjne-dzialania-z-uzyciem-urzadzenia-monitorujacego-ICam.html
- https://warszawa.naszemiasto.pl/policja-na-mazowszu-obserwowala-przechodniow-przez-kamere/ar/c15-9230247
See the videos captured by the police camera.
Police operations February 2023
Police in Radom (Poland) 2023
Rapid deployment urban monitoring - in a different place every day
The iCAM-Mobile is an advanced video surveillance system designed specifically for law enforcement agencies such as the City Guard and Police. The solution enables continuous video recording from the location, as well as remote access to the recorded material. This gives law enforcement services a constant overview of the situation on the city’s streets, allowing them to react quickly in the event of a threat to the safety of residents.
Benefits of using iCAM-Mobile:
- Increasing the effectiveness of law enforcement iCAM-Mobile enables continuous monitoring of a selected location, which allows for a quick response in the event of the commission of a crime or offence. The law enforcement services have a constant overview of the situation on the streets of the city, which increases the effectiveness of their actions and allows for quick interventions.
- Prevention of crime and misdemeanours iCAM-Mobile is not only a tool for responding to crimes and misdemeanours, but also for preventing them. The presence of a surveillance camera deters potential perpetrators of crimes and misdemeanours and, thanks to continuous image recording, it is possible to trace the exact circumstances of their commission.
- Easy access to recorded footage With the ability to remotely access recorded footage, law enforcement agencies can quickly and easily review footage from various cameras, allowing them to accurately trace the circumstances of a crime or offence.
- Support for investigations and court proceedings Recordings from iCAM-Mobile cameras are important evidence in court proceedings and investigations. This enables law enforcement services to conduct investigations and court proceedings effectively, allowing them to punish the perpetrators of crimes and offences.
- Reduced cost of policing operations iCAM-Mobile is a rapid deployment solution that can be easily transported and installed in various locations. As a result, law enforcement services do not need to invest in fixed surveillance cameras, thus significantly reducing the cost of operations.
CAMSAT 24/7 Technical Support
Over 20 years of experience allows us to design devices that are highly intuitive, easy to use, and meet the most important functionalities in a given industry. We are at your disposal 24 hours a day, 7 days a week.
The mobile camera system iCAM-Mobile issued fines for very large amounts of money for dangerous behavior of drivers.
The iCAM-Mobile rapid deployment camera by CAMSAT identified the perpetrators of dangerous behavior of drivers in Radom (Poland)”.
The CAMSAT rapid deployment camera and iCAM-Mobile camera were used by the police in Radom to record cases of intentional vehicle skidding by three drivers. Thanks to the recordings made by the iCAM-MobileHD II monitoring system, officers from the 1st Radom Police Station were able to identify the perpetrators of these offenses. The young drivers had their driving licenses revoked and the police forwarded requests for punishment to the court. The Radom District Court fined the “drifters” 2,500 PLN each and imposed a 6-month driving ban. The owner of the third vehicle involved in the offense was fined 5,000 PLN by officers from the Prevention Department of the Radom Municipal Police for not providing the driver’s information. The police in Radom also monitor places where illegal car races and drifting often occur, posing a danger to road users and disturbing the peace of nearby residents.
What is the iCAM-Mobile?
CAM-MobileHD II, also known as the “Rapid Deployment Camera on a Lamp Post”, is an innovative rapid deployment camera system created by Polish engineers from CAMSAT. It is the second edition of the popular system, which enables fast and wireless monitoring of various areas without the need for infrastructure or permits.
iCAM-MobileHD II is compatible with various city monitoring systems, such as Bosch VMS, Hikvision, or Novus. The camera can be powered and charged from a lamp post, enabling it to monitor the area 24/7. The camera’s image is of the highest quality and can be accessed from anywhere in the country. Each camera has memory, making it possible to archive recordings from 30 to 90 days ago.
iCAM-MobileHD II is an excellent solution for municipalities that want to implement area monitoring within a few days without the need for projects or permits. This camera can also be used to monitor illegal dumping sites – just mount it 300 meters away and record everything and everyone from a great distance.
iCAM-MobileHD II is characterized by lightning-fast installation – just screw the mounting socket to the lamppost or facade and insert the camera into the socket. The camera can even be mounted by a person with no technical experience. CAMSAT also provides 24/7 technical support.
The camera also has WiFi and 5 GHz radio line, enabling fast downloading of recorded materials.
What is rapid deployment CCTV tower?
What is rapid deployment CCTV tower?
Rapid deployment CCTV towers replace security guards.
The rapid deployment monitoring tower is an innovative product on the video surveillance market. The CAMSAT company offers a tower that combines mobility and flexibility, thanks to which it can be used to monitor construction sites, parking lots, outdoor events, squares or places with high crime. The CAMSAT tower can also be used to protect photovoltaic farms or border areas. Powered by capacious batteries and photovoltaic panels, it can operate in places where there is no access to a permanent power supply.
The product is very flexible, thanks to which the company can adapt it to the customer’s needs by equipping it with any equipment, also imported on special order. The CAMSAT tower requires only power supply, but thanks to the use of photovoltaic panels it can operate without access to external electricity. The tower is equipped with batteries that ensure uninterrupted operation in the case of power failures.
Remote access to the security systems is possible thanks to an efficient LTE router, and the video systems can be connected to a monitoring station or an application that supports the manufacturer’s recorder. The CAMSAT tower is equipped with a horn loudspeaker, which enables the broadcasting of warning messages.
The CAMSAT mobile monitoring tower is a product that can be used in any industry, thanks to which it gives an advantage over the competition. This tower is extremely versatile and adapted to various customer needs.
How does a rapid deployment CCTV tower work?
RETURN ON INVESTMENT IN JUST 12 MONTHS
DO YOU KNOW THE COSTS OF A SECURITY GUARD EMPLOYEE?
The annual cost of providing 24/7 security requires employing 2.5 people. With mobile CCTV towers, there are no issues taxes, sick leave, personnel problems or another.
MINIMAL SERVICE COSTS
Towers equipped with a very powerful solar-wind power system of over 1.3kW are self-sufficient and do not require battery replacement.
SERVICE AND MAINTENANCE
If you choose iCAM Tower you will receive a tower controller that you can send to the service center via courier or swap between towers in case of damage. This saves you transportation costs for a heavy tower and minimizes the technician’s work time.
RAPID DEPLOYMENT TOWER CONSTRUCTION
The construction of a rapid deployment tower is crucial for ensuring its reliable operation and durability. The tower’s main unit consists of three compartments, which the customer has independent access to, secured by a lock and alarm system. The main compartment contains power elements and video material archiving systems. An additional compartment is dedicated to manual operation of the telescopic mast, while the third compartment is used to store batteries.
At the top of the mast, there is a mounting platform where various devices can be installed, including AI-powered IP cameras, a horn speaker, an LTE router, and LED lighting. The mast should be equipped with wind stabilization in the form of 4 ropes.
The main unit typically has 4 extendable supports with leveling adjustment, which provide stability of the structure in adverse weather conditions, terrain leveling, or uneven ground. This allows the rapid deployment tower to operate in various conditions and on different terrains.
RAPID DEPLOYMENT TOWER POWER SUPPLY
To optimize power consumption, it is worth giving up additional LED lighting and cameras with high power consumption. On the mast, it is worth installing Dahua cameras from the Full Color series or Hikvision from the ColorVu series, which do not have IR illuminators and see well at night.
If the client values ecology, the best solution will be dual power supply, i.e., photovoltaic panels and mains power. Mains power can be replaced by a fuel cell, a permanent or temporary generator. An important element is the system protecting batteries from complete discharge and the ability to remotely monitor the battery charge status.
The main unit of the rapid deployment tower is equipped with a high-capacity battery compartment designed to power 12V DC. Access to batteries is protected by a lock and a separate security area.
DETECTION WITHOUT FALSE ALARMS
CCTV IP cameras with AI analytics allow for advanced applications. Thanks to deep learning technology, AI analytics algorithms can accurately identify objects and detect behaviors such as crossing a line or detecting an intruder. The AcuSense technology allows for even greater precision in detecting and classifying objects by excluding false alarms.
An important feature of Hikvision and Dahua IP cameras is also the ability to set virtual lines and detection areas. Detection can be customized to individual needs and requirements. This way, the camera will only detect objects that are relevant to us and not generate false alarms.
Thanks to CCTV IP cameras with AI analytics, space monitoring becomes more precise and effective. Cooperation with Axis, BOSCH, DAHUA, and Hikvision companies allows for choosing the best solutions for the client’s specific needs.
MEGAPHONE WITH AUTOMATIC WARNING MESSAGE
The gain control range allows for adjusting the volume level of the broadcast message to individual needs. Tube megaphones are highly effective for delivering voice messages, while providing high sound intensity levels compared to traditional speakers. Specially selected frequency response ensures excellent speech clarity.
The aluminum speaker construction provides increased resistance to adverse weather conditions, confirmed by the IP65 protection rating. This way, the tube megaphone is not only an effective, but also a durable solution for dispatchers needing to install warning messages.
ALARM SYSTEM IN THE MONITORING TOWER
Current alarm control panels enable communication with security agencies through various methods such as SIA-IP, GSM, LTE, or SMS. The system should be equipped with additional functionalities such as motion detection sensors around the rapid deployment tower, reed switches for opening individual compartments with installed devices, shock and tilt sensors.
By equipping the tower with an alarm control panel, it is possible to communicate and notify about events through different channels such as SMS, mobile app or GPRS connections. This allows the user to have full control over their alarm system and react quickly in case of a threat.
It is worth noting that the effectiveness of the alarm system largely depends on the quality and choice of individual elements. Therefore, when choosing an alarm system, it is advisable to consult with professionals who will help to select the best solutions for individual needs and conditions. CAMSAT works with top producers such as Satel Integra, Hikvision, Dahua, Optex, Bosch, and Axis.
Rapid deployment tower on road
Do you want to sleep peacefully - use only safe and professional constructions.
Very important: the wide wheelbase
You don’t have to worry about the competence of the employee, because we also took into account safety during transportation with such a high structure. The wide wheelbase ensures safe transport even on very uneven terrain, at high speed and in conditions of side wind gusts.
Thick steel and strong construction
Our rapid deployment towers are equipped with four batteries, each weighing 68kg, which, combined with driving on uneven and bumpy construction sites, requires a solid and reliable structure. That’s why our chassis are not ordinary trailers from construction markets, but specially designed and reinforced frames that provide maximum load capacity and DMC750. You can be sure about the safety while working with our rapid deployment towers.
Safety is the most important
We recommend using tower stabilizing supports that provide durable and stable support for the tower in all weather conditions, and with a load capacity of up to 4x 1300kg, they ensure safety while working at height. The use of independent supports for solar systems significantly increases the stability and load capacity of the structure, enabling effective and safe use of the entire rapid deployment tower on any terrain.
DAHUA CAMERAS, HIKVISION CAMERAS, AXIS OR BOSCH CAMERAS - YOU DECIDE
CAMSAT IS ALWAYS PRO
More than 20 countries around the world have trusted us.
All our rapid deployment towers include tested AI AcuSense/WizSense camera models and the best alarm center on the market, Satel Integra. This ensures that every customer can be sure that the tower will work reliably and effectively fulfill its tasks.
Our rapid deployment towers find application in many fields, such as monitoring industrial areas, stadiums, sports facilities, in the public safety sector, and many other places where quick and effective monitoring is required.
Our company offers not only the production of rapid deployment towers, but also their rental for a specified period of time. Our rapid deployment towers offer not only reliability and quality, but also mobility, which enables effective monitoring of various places simultaneously.
Therefore, if you are looking for a leader in the production of rapid deployment towers, CAMSAT is the best choice. Our solutions are used by companies around the world, and our long-standing presence in the market is a guarantee not only of quality, but also of continuous development and innovation. We invite you to familiarize yourself with our offer and take advantage of our services.
CAMSAT 24/7 Technical Support
Over 20 years of experience allows us to design devices that are highly intuitive, easy to operate, and meet the most important functionalities in a given industry. We are available 24/7 to assist you.
Rapid deployment towers on videos
Alarm in rapid deployment tower
Easy and quick commissioning
Lifting the mast with cameras
Wireless CCTV news in 2020 – CAMSAT Wireless
Become CAMSAT DISTRIBUTOR and and increase the potential of your business
For official distributors we offer:
- High discounts at the European level.
- Free shipping of main products’ demos.
- Complete technical support – at every stage of project.
- Full three-year warranty for main CAMSAT products.
- Forwarding inquiries from a given region of distribution.
- Direct contact with our engineers and programmers – in English and Polish, with the use of modern technologies: Messenger, LiveChat, direct mobile phone number, etc.
- Ready-made content and photos in high resolution for catalogs and websites.
- Editable marketing materials – delivering ready marketing materials for your own use, in editable formats like Photoshop .psd, CorelDraw .crd, Word .doc, and video materials for Sony Vegas software, etc.
- Logo of the distributor in our instructional video and advertising spots of products.
- DEMO devices – supporting distributors by providing presentation devices; rentals for shows and trade fairs.
- Participation of CAMSAT engineer in presentation at the key customers.
- All necessary help and preparation of CCTV installation projects.
