iCAM-PowerHD BACK
Fast deployment system - 100% wireless
14 800,00 zł
- Compatible with any IP camera – among others with cameras of brands such as: Hikvision, Dahua, Bosch, Axis, Avigilon, UNV, Samsung.
- 128GB of memory – allows recording 7-10 days of videos.
- Equipped with a light battery – enough to work for three days; the possibility of extension to 6-9 days.
- Charger included in the set
Does not need a power supply
Thanks to the very high mobility of the unit, it can work in a different observation area every day. It requires no wiring or even any external power supply. iCAM-Power BACK can be used even in places where telecommunications infrastructure or cabling is not yet provided. Today you need to observe illegal dumps, and tomorrow a mass event by the river or somewhere in a wide field.
The autonomous geolocation system will inform the user about the change of camera location or its movement. Exiting the camera from the circle zone, e.g. 50m, will cause a silent alarm as well as SMS and email notification with the current GPS position.
In addition, the system has a number of sensors informing about disassembly of the device by sending a notification to the user.
No external power source needed
The unit’s lithium battery lasts for three days
OSD
That is, displaying information in the video image – when working with Hikvision, Dahua and Axis cameras
Continuous wireless connection
For example, the SIM card enables connection to a remote iCAM system and NVR
Fast and simple installation process
Installation of the camera is as simple as sliding the device into mechanical slide-in socket and locking int with a padlock
SMS alarms
Automatic notification on detected alarm events
LTE also outside the EU
Via external IP, VPN or cloud P2P
Monitoring where CCTV cameras are not installed
- Monitoring of illegal waste dumps
- Observation of dark streets and dangerous places
- Monitoring of mass events and public events
- Monitoring from the cars of city guard and special services
- Observation of highly dangerous places
- Remote observation of flood and flood plain areas
- Observation of rivers and water level
- Monitoring of communes without projects and without permits allows implementing CCTV system in a few days
- Live view of construction site – 24h/day
ACTIVE SAFETY
Surprise the criminals and end with dangerous situations in city park or dark corners of the town.
Below we are presenting only some features of iCAM-Power BACK:
3 days of work on the built-in battery
Compatible with IP cameras
Remote access via LTE
Geolocation, and SMS / email notifications.
Lightning-fast installation process - even without the help of experts

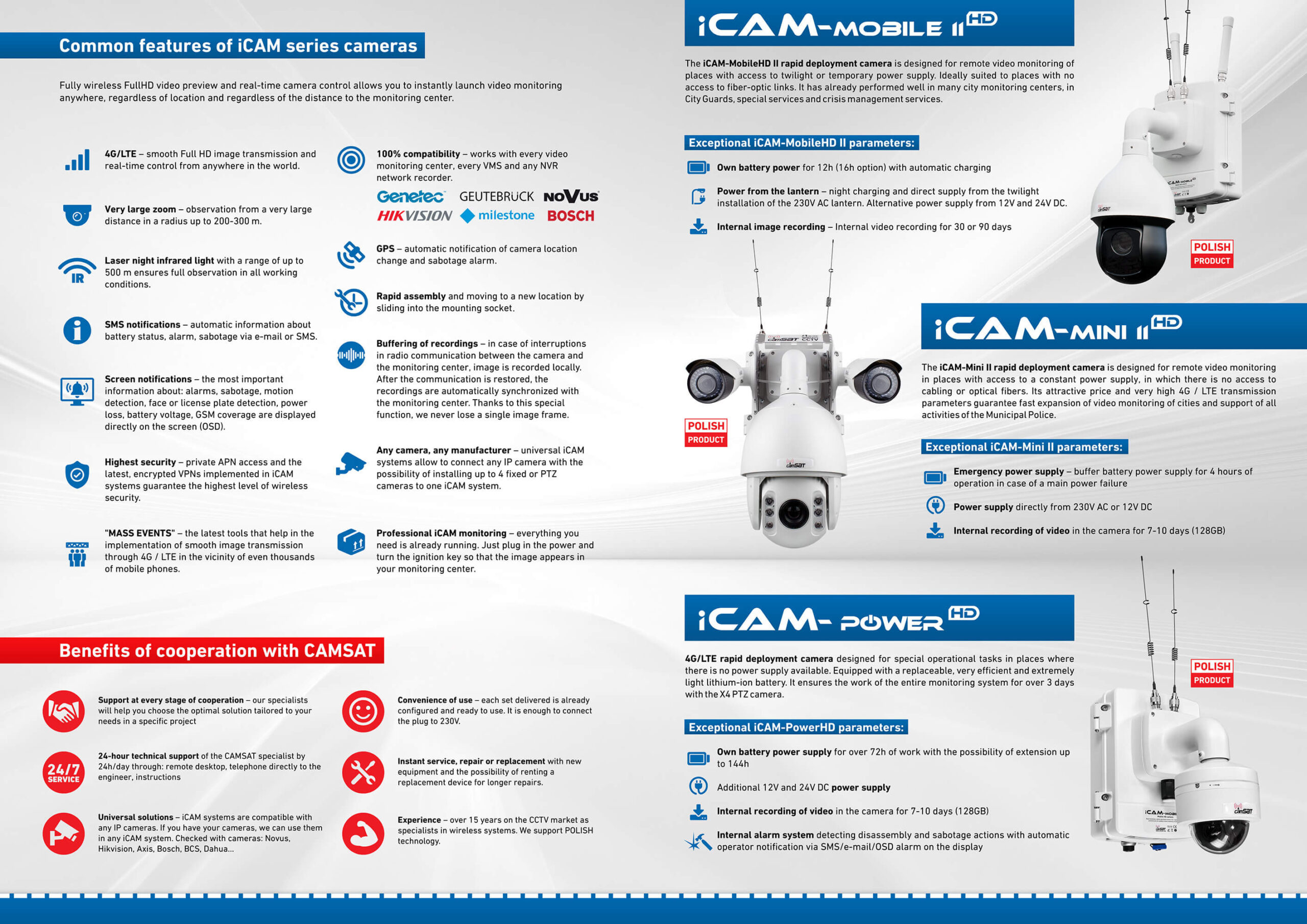

Catalogue
| Wireless connection | 4G/LTE |
|---|---|
| Pricelist index | [1080] |
| PoE sockets | YES (PoE x 2) |
| Built-in battery | 64 Ah Li-ION |
| Working time at the battery [time / power of camera] | 105h / 4W, 72h / 8W, 57h / 12W, 42h / 18W |
| OSD - showing transmission parameters, power status, and alarms on the camera's image | YES – with Hikvision, Dahua, Axis cameras |
| Charging time / number of cycles | 9h / >1000 |
| StandBy mode | YES |
| Notification about removal | YES + geolocation |
| Application | Outdoor – IP66 |
| Power | 12V DC |
| Possibility of connecting additional external battery, e.g. iCAM-Batter, iCAM-Battery230 | YES |
| Weigth | ~12kg |
Movies
Installation of rapid deployment iCAM camera
City video monitoring
without projects and permissions
