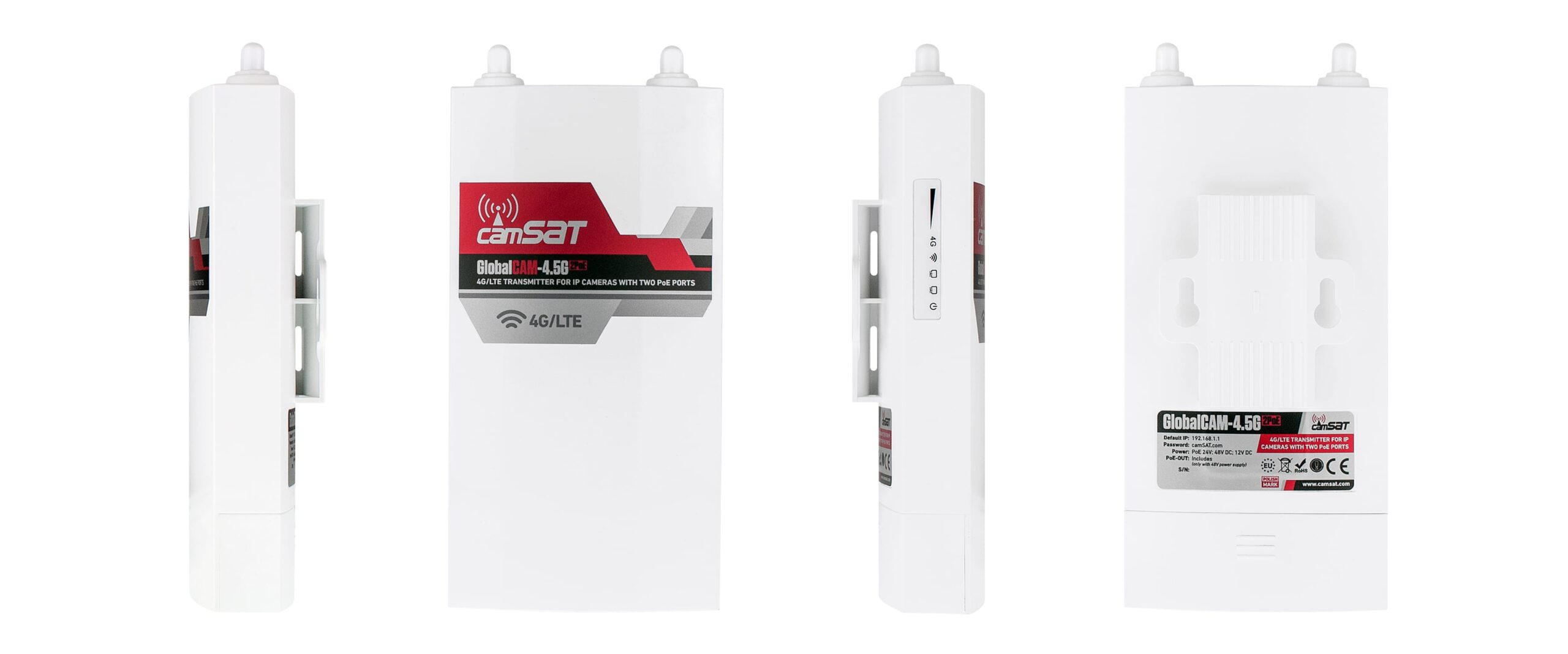

GlobalCAM4.5G is a compact and secure industrial 4G / LTE router for professional CCTV video surveillance applications. Provides high performance for critical cellular communication over a wide operating temperature range. Equipped with two Ethernet ports with PoE, a SIM card slot, power supply from 12V and 48V DC, and LEDs informing about the signal strength. External SMA antenna connectors allow you to connect antennas and easily find the best signal location.

The latest GlobalCAM4.5G router provides transparent and smooth wireless transmission between IP cameras and NVR recorders. It is designed for the wireless connection of many IP cameras with a registration point via the 4G/LTE Internet network. GlobalCAM4.5G is an industrial 4G/LTE router with Wi-Fi, resistant to external weather conditions. Embedded, the latest Linux system together with a very fast Quectel processor guarantees a stable connection of video streams from anywhere with speeds up to 150 Mb/s (downlink) and 50 Mb/s (uplink).

Wireless transmission from 4 IP cameras

Connect 4 IP cameras and you will receive and record a smooth video anywhere in the world. The transmission is almost the same as in a wired installation. Note: The device has 2 LAN ports and it is possible to connect other cameras via an IP network switch.

With GlobalCAM4.5G you have immediate access to video via a web browser or camera manufacturer’s application.

Registration of recordings on the NVR via the Internet

The NVR recorder can be hundreds of kilometers away from IP cameras, and it will record the full image from the cameras anyway. All streams will be sent over the Internet. Thanks to a very fast processor, GlobalCAM provides 25fps and smooth real-time video recorded on a recorder located even in another country.

Connect the cameras to the GlobalCAM4.5G router, and connect the recorder and NVR to the Internet. You can receive the image from all IP cameras via the Internet, and the image will be saved in the NVR. There is no need to use unstable clouds or P2P networks that will degrade the video quality and are fully dependent on external servers. It is enough to insert a SIM card with a fixed IP address into the router. You will get a direct connection to the cameras, and the live view and video recording will be almost identical to the cable. Additionally, you will get immediate access to the video via a dedicated camera application and a web browser.

Live access to all CCTV video surveillance on the site

– from anywhere. The CCTV installation can be located in any location in Europe. It is important that the LTE coverage in the facility is at a minimum of “two bars” LTE.

Example: To the network with the NVR connect the GlobalCAM4.5G with a SIM card with a fixed IP address. Such a set will allow access to all recordings, configuration, and live view via the Internet, just like via the cable. In addition, you will get immediate access to the video via the camera application or a web browser.

Connecting several cameras via Wi-Fi and forwarding via LTE

You can install Wi-Fi cameras wirelessly and connect them to the GlobalCAM4.5G router via Wi-Fi. All cameras will be sent via 4G / LTE to remote NVR. Isn’t it quick and easy?

Connecting machines with each other – a transparent bridge

Use GlobalCAM4.5G on both sides and connect two devices or entire networks transparently. A SIM card with a fixed IP address and unlimited data transmission will also be useful.

Two PoE ports

Two LAN ports with PoE function provide full power for two directly connected IP cameras. After connecting the DC 48V/2A power supply, each port will receive a PoE function with a capacity of 30W/port. Multiple cameras can be connected via any IP network switch, for example “X-CAM II Switch 8L”.

Multimedia packages for live video transmission

GlobalCAM4.5G is equipped with multimedia packages, which are responsible for the priority transmission of audio/video streams. This ensures smooth image transmission and PTZ camera control with a minimal delay of only 0.4s.

Very fast transmission from any facility

Only “two lines” of LTE range are enough for GlobalCAM4.5G to ensure smooth transmission of images from FullHD cameras. The CAMSAT router uses 100% LTE technology, which provides up to 150Mb/s reception speed and 50Mb/s sending speed. By setting the cameras to H.265 compression, about 1000-1500kbps bitrate per camera is enough to transmit one FullHD image. This allows you to connect several IP cameras and ensure smooth transmission, taking into account the large reserve of bandwidth needed, for example, during difficult weather conditions.

Ready configuration sets for Hikvision and Dahua

The router already has default settings containing all port forwarding needed to connect to cameras and recorders from brands such as Hikvision and Dahua. You no longer need the IT knowledge to start a remote connection with IP cameras. In GlobalCAM4.5G you have all the settings already configured – you just need to select and activate them. In addition, the settings panel includes example connection diagrams with cameras, examples of settings and helpful tips that will facilitate the work of every installer.

Very easy to configure – you only need to enter two parameters

CAMSAT has been producing devices that are extremely simple to install for almost 20 years. Offering products that do not require special training to use effectively is one of the company’s greatest strengths. It is the same this time. GlobalCAM4.5G is a professional router that is also very easy to set up. To connect a remote camera with the recorder, it is enough to set only two parameters in the web panel. In addition, for larger installations consisting of several Hikvision or Dahua cameras, we have prepared ready-made settings packages that you just need to activate.

Router configuration, restoration, and saving of its settings is done via the web interface, using a web browser.

Installation and management:

• management via the web interface
• backup and restore device settings
• restore default settings
• firmware update via the web interface

Industrial stability at the price of “HOME” packets.

The latest GlobalCAM4.5G router is half the cost of the previous GlobalCAM-LTE model. The use of the latest, industrial Quectel processors in the design ensured an increase in speed to the maximum possible FULL LTE speed and a simultaneous reduction in price by as much as 50%.

Symmetrical internet connection

The CAMSAT router guarantees a very high speed of transmission in both directions. DSL and ADSL technologies have a very low speed of sending data, which prevents the stable transmission from video cameras. In the security industry, there is no place for the unstable operation of CCTV monitoring. GlobalCAM4.5G includes a range of connection quality monitoring tools. If necessary, they will perform an automatic restart or inform about the existing situations.

Compact & Outdoor

The small size and the resistance to external weather conditions make the GlobalCAM4.5G router dedicated to any CCTV installation.

Built-in Wi-Fi for wireless cameras

In addition to LTE transmission, GlobalCAM4.5G also has Wi-Fi wireless transmission on board. It is designed for radio connection with any wireless cameras. AP (Access Point) operating mode enables wireless connection with many Wi-Fi cameras and further transmission of images to the Internet.

SIM cards without any data limits and with a fixed IP address

Only one 2Mpix camera generates over 900GB of data a month! This requires a completely unlimited data transmission. Such SIM cards, with external access unlocked, and with static IP address with GlobalCAM4.5G allow smooth access to video surveillance in the same way as over the cable. Ask your operator for unlimited SIM cards with static IP address.

Examples of use cases:

• public transport
• any CCTV video monitoring
• parcel lockers and free-standing points
• video monitoring point with solar power supply
• IoT – Internet of Things
• road monitoring
• construction sites supervision
• transmission from ferries and ships
• driving courses and schools
• national parks and nature observation
• industry and energy
• SMART CITY

Two LAN ports + any switch PoE

GlobalCAM4.5G can be connected to any network switch and thus transmit data from more cameras. Similarly, by connecting GlobalCAM4.5G to the NVR, we will send all images wirelessly.

The latest LINUX system

Security and intrusion resistance tests are carried out continuously on all CAMSAT wireless devices and all products are periodically updated. It effectively eliminates any breaches and ensures the highest level of security.

Firewalls, encryption, filtering

In addition to wireless 4G/LTE connectivity, the router has the latest Linux system with a number of security features. Firewall and connection filtering will minimize and block attempts of unauthorized access.

• NAT firewall, protection against DoS attacks (Denial of Service)
• access control, URL blocking, MAC address filtering
• DMZ support

Reliability

Reliability is one of the main goals when designing wireless devices. Camsat products are designed and manufactured with the highest reliability in mind. In addition, the 24/7 service always provides technical support regardless of the day of the week.

Over 18 years of experience in Wireless CCTV

Our engineers take care of every detail so that CAMSAT devices work reliably for many years.

Become a distributor of professional wireless CCTV systems

Introduce CAMSAT products to your offer. We support partners and distributors, train and provide technical support.
