CDS-6IP Multi PoE

Wireless transmitter for IP cameras with 4 PoE + ports

980,00 zł

4 PoE+ ports with a total capacity of 60W
Range 2km LOS
20-60M bitrate – total bitrate of all transmitted cameras – depends on the distance
Powered from 12V – it makes it compatible with standard CCTV power supplies and buffer power supplies with a battery.
iCAMSAT-OS without frame loss – streams of HD and 4K images are a continuous transfer of massive amounts of images. Special iCAMSAT-OS video protocols ensure continuous transmission of HD images without loss of image frames.
Double antenna built-in
Easy configuration – the system requires only two parameters to be set up to get a radio connection.
Remote preview – the device allows previewing the signal and image on the screen of a smartphone or tablet.
Compatible with any CDS-6IP wireless CCTV module

Compare

SKU: 8002 Categories: Wireless transmitters for CCTV, For IP cameras Tags: 16 channels, 2 km range, 4k, 4x PoE+, 5GHz, IP65

Description

Wireless system for audio/video signal transmission.

CDS-6IP MultiPoE is a wireless PoE transmitter with a range of 2km

Compatible with any IP cameras powered via PoE. The unique function of wireless transmission and powering cameras via PoE at the same time is very popular among professional CCTV installers.

Free and stable 5GHz frequency

It works in the free 5.6 GHz frequency band with a power of up to 500 mW (27 dBi EIRP). The device sends all data between IP cameras and the recorder in a transparent manner – identically as through a cable.

The system with special protocols for 4k video transmission.

“CDS-6IP Multi PoE” is not an ordinary computer device for internet transmission but a high-performance transmitter for continuous and uninterrupted transmission of powerful 4k images.
The implemented audio/video protocols ensure the transmission of all HD and 4k image frames with only a slight transmission delay.

What to use as a receiver?

Due to the 4 PoE ports, the CDS-6IP MultiPoE module is used on the IP camera side. For signal reception, we recommend the “CDS-6IP eco” module which can receive signals from up to 4 such transmitters. The transmitter works with any modules of the CDS-6IP family, e.g. CDS-6IP eco, CDS-6IP SMA, etc.

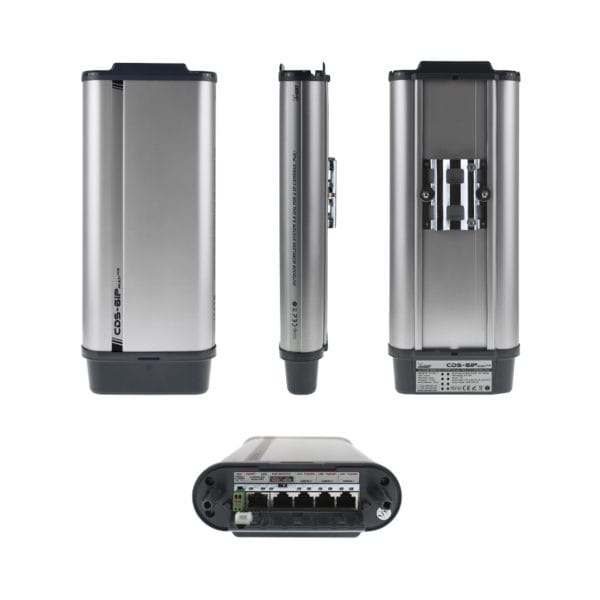

Four PoE+ ports

It has 4 PoE ports for connecting 4 IP cameras. Each port has a function to power the camera, in PoE standard. Just connect a 12V, 24V or 48V power supply to the transmitter and it will power all the connected cameras via PoE.

Very simple to configure

…of the device allows even the novice users to configure the device easily. To obtain a radio connection, you only need to set the module’s IP address and operating channel (frequency). In case of doubt, you can use special HELP icons to obtain additional information in Polish and English, or use our 24/7 technical support.

Plug and Play

The configuration is done through a user-friendly www panel that is compatible with any web browser and smartphone.

Our wireless CCTV system CDS-6IP Multi PoE uses a special VIDEO BRIDGE mode, which guarantees minimal delay and stable transmission in all operating conditions.

Range and speed

The range of the CDS-6IP MultiPoE transmitter with the CDS-6IP eco module is up to 2 km at a continuous load of 20M bitrate. For a distance of 300m, the transmission speed is up to 60Mega bitrate, which enables stable transmission from up to 16 IP cameras.

Four PoE ports

You can connect up to 4 cameras without additional power supplies. We supply all IP cameras directly from our transmitter.

Range 2000m

The range of the standard CDS-6IP MultiPoE model is over 2000m

High resolution and high bitrate

CDS-6IP MultiPoE supports all IP cameras of any manufacturer with any resolution. The sum of continuous bitrate transmitted wirelessly is up to 20-60M bitrate.

Simplicity of usage + 24h/7 technical support

It is enough to set only 2 necessary parameters (IP address and channel number) to get a radio connection. On special request, we provide radio units 100% set according to the connection diagram.

300M MIMO radio speed

The precision directional antenna with a processor speed of more than half GHz provides instant transmission with minimal delay.

Plug & Play

A specially adapted user panel allows remote viewing of many transmission parameters, among others the quality of the radio connection, range, free operating frequencies, testing the correctness of settings and many others.

Settings tester

Particularly useful function when installing radio units on very high and hard to reach objects. In the event of remote wireless access and a mistake in the CDS-6IP settings, it will automatically restore the remote access, going back to the previous correct settings.

iCAMSAT-OS without frame loss

Special iCAMSAT-OS video protocols ensure continuous transmission of HD images without loss of image frames.

HIGH-QUALITY IMAGE TRANSMISSION WITH 4 IP CAMERAS

CDS-6IP MultiPoE is a unique device on the European market ensuring stable wireless transmission and at the same time powering all connected cameras.

Below we are presenting only some features of CDS-IP6 Multi PoE:

12V - 48V DC

Work in the 5.6 GHz band with 500 mW (27 dBi EIRP)

Supported resolutions: 4k, UHD, HD, 16M pix

Range up to 2000m

This is custom heading element

CONTROL PANEL

Below there are photos that show the possibilities of configuring the device through its GUI control panel. Click on a photo to zoom it.

Logging in into CDS-6IP

Master / Slave - choose working mode (transmitter or receiver)

Scan Master - searching for receiver

Slave - transmitter mode, at the camera side

Information tab

Wireless tab - radio settings

Save - Test - Cancel

WHAT POWER SUPPLY FOR CDS-6IP Multi PoE?

We recommend powering the CDS-6IP Multi PoE with 48V DC.

In this configuration, the CDS-6IP Multi PoE transmitter will power all IP cameras directly from PoE ports.
The power supply’s power supply depends on the power consumption of the connected IP cameras.
Example: CDS-6IP Multi PoE consumes about 16W. When connecting four 10W IP cameras, we need a power supply with a minimum capacity of 56W.
56W / 48V = PSU current = 1.16A
In the case of using cameras with a higher power, choose a correspondingly larger power supply.
Recommended CAMSAT power supplies: ZS-48/1.5 and ZS-48/2.5

CCTV CALCULATOR

Selection of wireless antennas for IP cameras - calculator of camera range and bitrate

In order to quickly select wireless transmitters for IP cameras, we have prepared an application that calculates the required number of radio units in a given CCTV installation.
Use our calculator to choose the right number of wireless devices for your IP cameras.

Speed and range recommended for 100% transmission, including interference in the 5GHz band:

• 63M bitrate – 100m,
• 59M bitrate – 500m,
• 48M Bitrate – 1000m,
• 33M Bitrate – 1500m,
• 12M Bitrate – 2000m.

Additional information

Porty LAN/PoE (PoE jako źródło zasilanie dla kamer IP)
Type of work	point to point, point-to-multipoint
Mode of work	VIDEO BRIDGE, MASTER (AP) / SLAVE (Client)
Radio bandwidth	CE: 5180-5350 MHz; 5470-5725 MHz
Number of CE work channels	16
Supported resolutions	All IP camera resolutions up to maximum bitrate, e.g. 16Mpix cameras, 4k, UHD HD 1080p, other
IP cameras	1-16 Mpix (up to 63M bitrate)
Max. sum of bitrate	63M bitrate – 100m, 59M bitrate – 500m, 48M Bitrate – 1000m, 33M Bitrate – 1500m, 12M Bitrate – 2000m
LAN inputs / outputs	4 x LAN (RJ45 10 / 100 Base-TX)
PoE OUT	YES – powering the UP cameras directly by the device’s LAN ports (4x PoE+) Works with 12V DC power too.
PoE IN	No – radio device can not be powered by PoE switch
Transmission coding	64/128/152-bit WEP, WPA, WPA-PSK, WPA-2-PSK
Antennas	Internal, built-in 14 dBi MIMO (double HV polarisation); working angles: H-60°, V-25°.
Standard range (with integrated antennas)	2 km
Output power	27 dBm (500 mW e.i.r.p.)
Modulation	digital OFDM that can work through small obstacles
Power consumption	16W + power of the connected PoE cameras
Power	12V – 48V DC. Attention: power supply not included in the set. Recommended power supply: 48V 1.5A DC, available in CAMSAT. The power supply’s power supply depends on the power consumption of the connected IP cameras. Example: CDS-6IP Multi PoE alone uses 16W + power of connected IP cameras = minimal supply power.
Working temperature	-20°C – 55°C
Tightness class	IP65
Dimensions	140x340x60 [mm]

Versions

Comparison of the family of wireless devices for IP cameras from the CDS-6IP series by CAMSAT.

Red color shows main diferences.

Parameters / models	CDS-IP6 Multi	CDS-IP6 eco	CDS-IP6/SMA	CDS-6IP 3PoE
[Index]	[8002]	[8001]	[8003]	[8009]
Type of work	point-to-point, point-to-multipoint	point-to-point, point-to-multipoint	point-to-point, point-to-multipoint	point-to-point, point-to-multipoint
Operating mode	VIDEO BRIDGE, MASTER / SLAVE	VIDEO BRIDGE, MASTER / SLAVE	VIDEO BRIDGE, MASTER / SLAVE	VIDEO BRIDGE, MASTER / SLAVE
Radio bandwidth	CE: 5180-5350 MHz; 5470-5725 MHz	CE: 5180-5350 MHz; 5470-5725 MHz	CE: 5180-5350 MHz; 5470-5725 MHz	CE: 5180-5350 MHz; 5470-5725 MHz
Number of CE work channels	16	16	16	16
Supported resolutions	All IP camera resolutions up to a maximum bitrate of e.g. cameras 12Mpix, 4k, UHD, HD 1080p, others	All IP camera resolutions up to a maximum bitrate of e.g. cameras 12Mpix, 4k, UHD, HD 1080p, others	All IP camera resolutions up to a maximum bitrate of e.g. cameras 12Mpix, 4k, UHD, HD 1080p, others	All IP camera resolutions up to a maximum bitrate of e.g. cameras 12Mpix, 4k, UHD, HD 1080p, others
IP cameras	1-16 Mpix (do 63M bitrate)	1-16 Mpix (do 63M bitrate)	1-16 Mpix (do 63M bitrate)	1-16 Mpix (do 63M bitrate)
Max. sum bitrate	– 63M bitrate: 100m, – 59M bitrate: 500m, – 48M bitrate: 1000m, – 33M bitrate: 1500m, – 12M bitrate: 2000m.	– 63M bitrate: 100m, – 59M bitrate: 500m, – 48M bitrate: 1000m, – 33M bitrate: 1500m, – 12M bitrate: 2000m	– 63M bitrate: 100m, – 59M bitrate: 500m, – 48M bitrate: 1000m, – 33M bitrate: 1500m, – 12M bitrate: 2000m	– 63M bitrate: 100m, – 59M bitrate: 500m, – 48M bitrate: 1000m, – 33M bitrate: 1500m, – 12M bitrate: 2000m
LAN ports	4 x LAN (RJ45 10 / 100 Base-TX)	2 x LAN (RJ45 10 / 100 Base-TX)	2 x LAN (RJ45 10 / 100 Base-TX)	3 x LAN (RJ45 10 / 100 Base-TX)
PoE OUT – power the camera from LAN ports	YES 4x PoE	No	No	YES 3x PoE
PoE IN – radio powered from a switch or PoE NVR	No	No	No	YES (port no 1)
Transmission coding	64/128/152-bit WEP, WPA, WPA-PSK, WPA-2-PSK	64/128/152-bit WEP, WPA, WPA-PSK, WPA-2-PSK	64/128/152-bit WEP, WPA, WPA-PSK, WPA-2-PSK	64/128/152-bit WEP, WPA, WPA-PSK, WPA-2-PSK
Antennas	Internal, integrated 16 dBi MIMO (dual H-V polarization). Antenna work angle: H-60°, V-25°.	Internal, integrated 14 dBi MIMO (dual H-V polarization). Antenna work angle: H-60°, V-25°.	Internal, integrated 14 dBi MIMO (dual H-V polarization). Antenna work angle: H-60° V-25°. Additional RP-SMA sockets for external antennas.	Internal, integrated 16 dBi MIMO (dual H-V polarization). Antenna work angle: H-60°, V-25°.
Standard range (with integrated antennas)	2 km	2 km	2 km	2 km
Output power	27 dBm (500 mW e.i.r.p.)	27 dBm (500 mW e.i.r.p.)	27 dBm (500 mW e.i.r.p.)	27 dBm (500 mW e.i.r.p.)
Modulation	digital OFDM	digital OFDM	digital OFDM	digital OFDM
Power	48V PoE and separately 12V do 48V DC	12V DC 1A and 12-24V PoE	12V DC 1A and 12-24V PoE	12V – 48V DC
Working temperature	from -20°C to 55°C	from -20°C to 70°C	from -20°C to 70°C	from -20°C to 55°C
Tightness class	IP65	IP55	IP55	IP65
Dimensions	140x340x60 [mm]	88x235x40 [mm]	140x235x60 [mm]	89x246x48 [mm]
