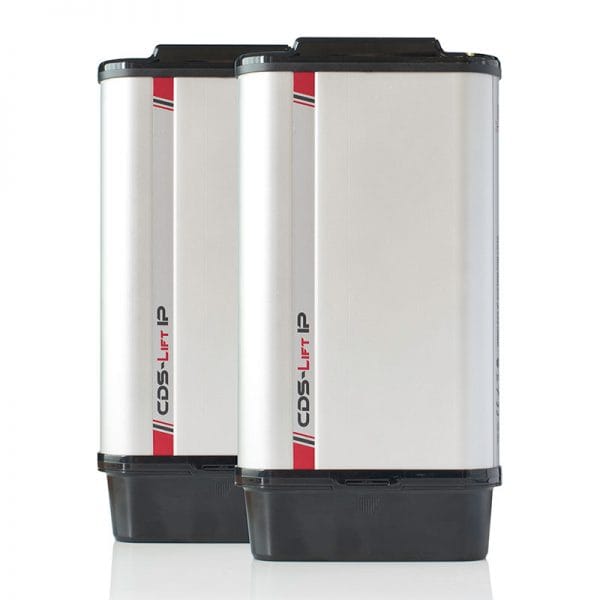

CDS-Lift IP
Wireless CCTV system for monitoring elevators and cranes
- CCTV system with two inputs for IP cameras – each transmitter has two inputs for IP cameras; each input sends images from cameras with a resolution of up to 8 Mpix.
- Quick to install and easy to start – operating the transmitter requires no IT knowledge; just follow the instructions – select the operating mode and select the channel number.
- Resistant to interference and signal reflection – the use of digital radio technology ensures uninterrupted transmission even when the elevator is moving at high speed and transmission between numerous elevator cables.
A reliable system for monitoring elevators
The system wirelessly transmits signals from IP cameras located inside the elevator cabins. The image quality is lossless and identical to the wired transmission. CDS-Lift IP transmits all video, audio and data signals in a transparent manner. One unit can receive signals from two independent elevators working in the same shaft.
The system is designed to work on both old and new types of electric and hydraulic lifts. It is used in passenger lifts, hospital lifts or special lifts.
Each transmitter has two inputs for IP cameras. Each input sends images from cameras with a resolution of even 8 Mpix.
The CDS-Lift IP system meets the latest EMC emission standards for radio devices EN-301 489-1 and EN-301 489-17 as well as e.g. mobile phones, wireless headphones and other radio devices that can work in cabin lift. The device has also successfully passed compliance with safety standards such as EN-50385 and EN-60950 allowing for safe use.
CAMSAT technicians and engineers are happy to provide more information.

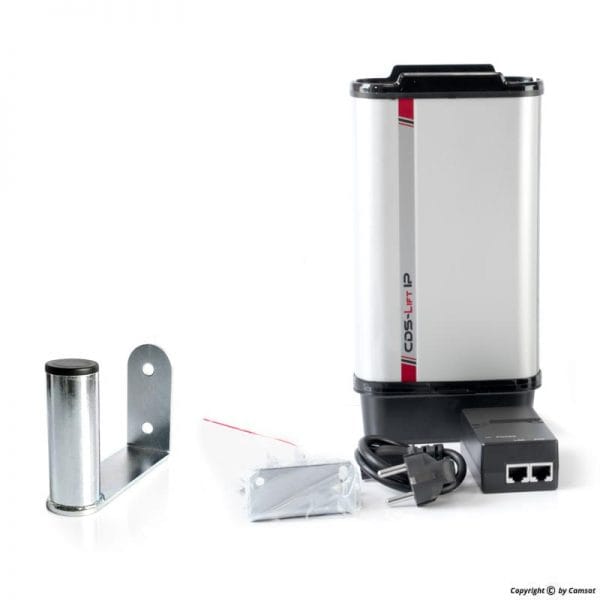

The set contains:
- CDS-Lift IP – 2 pcs,
- handle with adjustable angle – 2 pcs.
Two IP camera inputs
The system is compatible with cameras with a resolution of up to 8Mpix.
Quick and easy to install and run
The transmitter installation and configuration process do not require IT knowledge.
High image quality
The video transmitted through the CDS-Lift IP system is identical to the video transmitted via cable connections.
Standards and safety
The CDS-Lift IP system meets the latest EMC emission standards.
Universal purpose
New and old type passenger lifts, goods lifts, special lifts.
Resistant to interference and signal reflection
Uninterrupted transmission, regardless of the elevator operating conditions.
UNIVERSAL AND EASY TO INSTALL VIDEO MONITORING SYSTEM FOR LIFTS
- works in electric and hydraulic cranes of old and new type
- uninterrupted transmission even when the elevator is moving quickly
- loseloss video quality
- handling two cranes in one shaft by one device
- transmitter configuration using DIP switches
- meets safety standards and EMC emission standards
LIFTS AND CRANES MONITORED BY IP CAMERAS
CDS-Lift IP is a unique video monitoring CCTV system for all types of electric and hydraulic lifts. Provides high quality uninterrupted transmission regardless of shaft cabling and lift speed.
Below we are presenting only some features of CDS-Lift IP:
48V PoE power supply, 6W power consumption
16 working channels (2 CE)
IP 55 tightness class, operation in the temperature range from -20°C to 70°C
Range 250 meters
Image example
| Work mode | cabin / receiver (multipoint – point) |
|---|---|
| Radio band | 5.2GHz, 5.8GHz |
| Number of working channels | CE: 2, FCC: 7, 16 |
| IP cameras | 1-8 Mpix (all types) |
| Inputs for IP cameras | 2x RJ45 10/100 Base-Tx, including one PoE port for IP camera up to 15.4W (48V) |
| Transmission encoding | 128bit WPA |
| Antennas | Built-in directional antennas (14dbi, 30° angle) |
| Range | 250m |
| Modulation | Digital OFDM |
| Power consumption | 6W |
| Power | 48V PoE |
| Working temperature | from -20°C to 70°C |
| Tightness | IP55 |
Examples of use
