CDS-EasyIP PoE
Installation comfort - wireless transmitter for IP cameras with one PoE port
- The best price-to-installation ratio – easy and very fast assembly reduces labor costs to a minimum and the included power supply also powers the IP camera
- Easy configuration without a computer – The whole process of starting the system relies on selecting channel number and working model using a micro DIP switch.
- Two LAN inputs for IP cameras, including one with PoE – the PoE port is used to power the IP camera up to 15W
- Power adapter included that will also power the 15W IP camera
- Works with any cameras IP up to 16Mpix
- Used in facilities with high radio interference and in large areas
- Great for beginner installers in IP – installation requires no technical knowledge
- Transparent – send everything in both directions on IP networks – the IP address family and the protocol used are irrelevant
Special system with protocols for HD and 4K video transmission
Innovative control with micro DIP switches, intuitive operation and the highest bitrate performance – that’s CDS-EasyIP PoE
Innovative wireless system for IP cameras that does not require a computer to configure and launch. Very easy to launch a system of transmitters and receivers, designed for installers starting to work with IP cameras. Launching requires only selecting the operating channel with DIPswitch and selecting the transmitter/receiver option. The rest of settings are configured automatically with transmission coding.
CDS-EasyIP is not a computer device for internet transmission but a wireless video transmitter for continuous and uninterrupted transmission of high-quality video images.
The implemented special audio/video protocols ensure transmission of all HD and 4K picture frames with a slight transmission delay.
In addition to the simultaneous transmission of many images and sounds, it also allows PTZ cameras control and data transmission between the recorder and cameras.
The system transparently transmits the signal from IP cameras regardless of the IP address in the cameras or recorder. To fully launch the CDS-EasyIP radio link, you do not need to set many complicated parameters unlike using other IP systems.
CDS-EasyIP works on 16 independent wireless channels including four free European channels (CE). The possibility of using four transmitters for one receiver provides the use of up to 64 IP cameras on one installation (16 cameras in the EU).
CDS-EasyIP does not need a web panel to login. The most important parameters are set by switches on the front panel of the device.
iCAMSAT-OS without frame loss
Special iCAMSAT-OS video protocols ensure continuous transmission of HD images without loss of image frames.
High resolution
CDS-EasyIP supports cameras with resolutions from PAL, through Ultra HD, up to 4k.
Ease of use
It is enough to set only 2 necessary parameters (IP address and channel number) to get a radio connection.
4 transmitters to 1 receiver
CDS-EasyIP works on 16 independent wireless channels, including four free European channels (CE).
Built-in internal antenna
Working angle 30°, range 2500 meters.
Work with other IP systems
This wireless video transmitter can be added to any other existing wireless installation, and the signal can be retransmitted up to four times.
INSTALLATION COMFORT, EXTREMELY UNIVERSAL
Since we released you from the time-consuming configuration of IP devices, you can fully focus on other, more important matters. It all depends on you – now you have
time for that.
Remember that CDS-EasyIP PoE is
- Two inputs for IP cameras, including one with PoE
- A power supply included in the set will also power the 15W IP camera
- Compatible with any IP camera up to 16Pix
- Used in installations with high radio interference and in large areas
- Great for novice installers in IP – installation requires no technical knowledge
- Transparent – send everything in both directions on IP networks – the IP address family and the protocol used are irrelevant
- The best ratio of price and labor time.
HIGH QUALITY VIDEO FOR EVERYONE
Image transmission from cameras with a resolution of up to 4k using special audio/video protocols ensuring low signal delay. Quick installation and easy DIP switch configuration make this model suitable for beginner installers.
Below we are presenting only some features of CDS-EasyIP:
Powered from 48V PoE
resolution support: PAL, HD, UHD, 4k
Range 2500m
16 working channels, including 4 CE
CCTV CALCULATOR
Selection of wireless antennas for IP cameras - calculator of camera range and bitrate
In order to quickly select wireless video transmitters for IP cameras, we have prepared an application that calculates the required number of radio units in a given CCTV installation.
Use the radio equipment calculator to choose the right number of wireless devices for IP cameras.

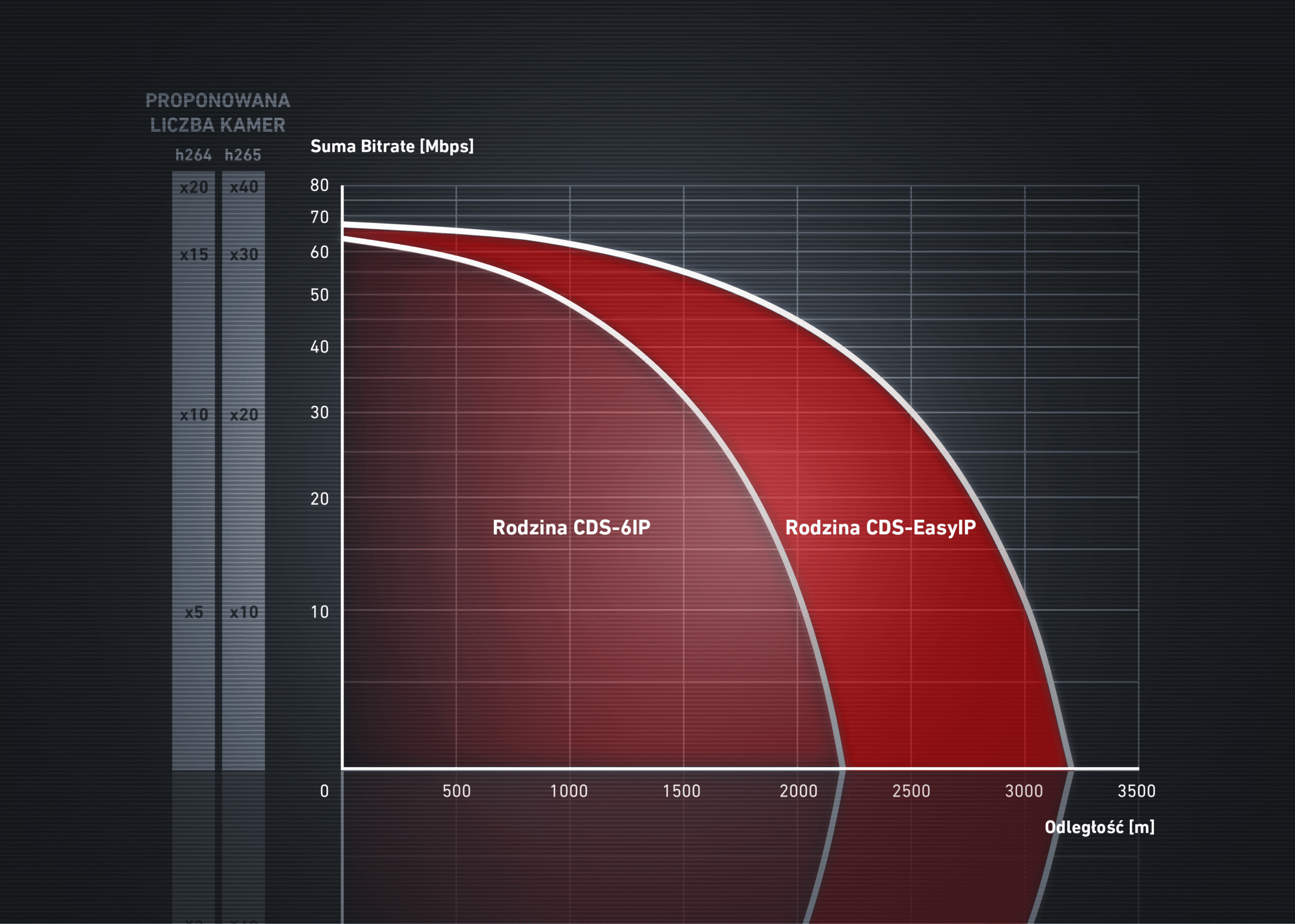

Speeds and range recommended for 100% transmission, including interference in the 5GHz band:
• 68M bitrate – 500m,
• 60M Bitrate – 1000m,
• 50M Bitrate – 1500m,
• 40M Bitrate – 2000m,
• 30M Bitrate – 2500m,
• 12M Bitrate – 3000m.
| Type of work | point to point, point-to-multipoint |
|---|---|
| Operating mode | Transmitter/receiver (4 transmitters for 1 receiver) |
| Radio band | CE 5150 – 5250 MHz; 5150 – 5900 MHz |
| Number of working channels | CE: 4; 16 |
| IP cameras | 1-8 Mpix |
| Supported resolutions | 4K, UHD, HD1080p, HD720, PAL/NTSC, others |
| Constant load | 15-25 Mbit for 2km; 30 Mbit for 1km |
| Modulation | Digital ODFM |
| Standard range (with built-in cameras) | 2.5km |
| Sockets for IP cameras | 2 x RJ45 10/100 Base-TX – one of them is PoE socket for powering IP camera (max power consumption: 15.4W – 48V) |
| Socket for NVR recorder | YES – 1 x RJ45 10/100 Base-TX |
| Receiver sensitivity | -89 dBm |
| Output power (e.i.r.p.) | 23-27 dBm |
| Transmission coding | YES – coding selecting by DIP switches |
| CDS-Easy IP antenna | Internal, integrated 14 dBi MIMO (dual H-V polarization) Antenna work angle: H-60°, V-25° |
| CDS-Easy IP/SMA antenna | IP/SMA SMA antenna output for an external antenna and an internal antenna, integrated 16 dBi MIMO Antenna angle of operation: 30 ° |
| Antennas dedicated for CDS-EasyIP SMA | 5,2 GHz MIMO (H-V) e.g. AP13-HV |
| Tightness class | IP65 |
| Powered by | 48V PoE |
| Power consuption | 6W |
| Working temperature | -20°C ÷ 70°C |
| Power supply for transmitter and IP camera | YES 24W |
| Port protection | 8kV |
| The set with CDS-EasyIP includes | – Wireless CCTV unit CDS-EasyIP – 1 piece – 48V power supply – Band clip – 2 pieces – Manual and CE certificate |
| The set with CDS-EasyIP/SMA included | – Wireless CCTV unit CDS-EasyIP – 1 piece – 48V power supply – Band clip – 2 pieces – Manual and CE certificate |
Versions
Comparison of the family of wireless devices for IP cameras from the CDS-EasyIP series by CAMSAT.
Red color shows main differences.
Parameters / models | CDS-EasyIP PoE | CDS-EasyIP eco |
|---|---|---|
| [Index] | 8005 | 8004 |
| Type of work | point-to-point, point-to-multipoint | point-to-point, point-to-multipoint |
| Operating mode | Transmitter / receiver (4 transmitters for 1 receiver) | Transmitter / receiver (4 transmitters for 1 receiver) |
| Radio bandwidth | CE 5150 – 5250 MHz; 5150 – 5900 MHz | CE: 5150 – 5250 MHz; 5150 – 5900 MHz |
| Number of work channels | CE: 4; 16 | CE: 4; 16 |
| IP cameras | 1-8 Mpix | 1-8 MPix |
| Supported resolutions | 4K, UHD, HD1080p, HD720p, PAL/NTSC i inne | 4K, UHD, HD1080p, HD720p, PAL/NTSC i inne |
| Max. sum bitrate | – 70M bitrate: 100m, – 68M bitrate: 500m, – 60M bitrate: 1000m, – 50M bitrate: 1500m, – 40M bitrate: 2000m, – 30M bitrate: 2500m, – 12M bitrate: 3000m. | – 70M bitrate: 100m, – 68M bitrate: 500m, – 60M bitrate: 1000m, – 50M bitrate: 1500m, – 40M bitrate: 2000m, – 30M bitrate: 2500m, – 12M bitrate: 3000m. |
| Modulation | Digital OFDM | Digital OFDM |
| Standard range (with integrated antennas) | 2,5km | 2,5km |
| Inputs for IP cameras | 2 x RJ45 10/100 Base-TX, including one PoE port for IP camera up to 15.4W (48 V) | 2 x RJ45 10/100 Base-TX |
| Output to NVR | TAK 1 x RJ45 10/100 Base-TX | TAK 1 x RJ45 10/100 Base-TX |
| Receiver sensitivity | -89 dBm | -89 dBm |
| Output power (e.i.r.p.) | 23-27 dBm | 23-27 dBm |
| Transmission coding | TAK – coding selected by DIP switches. | YES – coding selected by DIP switches. |
| Antenna | 1: Internal, integrated 16 dBi MIMO (dual H-V polarization), antenna working angle: 30 °; 2: IP / SMA has SMA antenna output for external antenna, and internal antenna, integrated 16 dBi MIMO, antenna working angle: 30 ° | Internal, integrated 16 dBi MIMO (dual H-V polarization), antenna working angle: 30 ° |
| Dedicated antennas | 5,2 GHz MIMO (H-V) np. AP13-HV | N/A |
| Klasa szczelności | IP65 | IP65 |
| Zasilanie | 48V PoE | 48V PoE |
| Pobór mocy | 6W | 6W |
| Temperatura pracy | -20° C ÷ 70° C | 20° C ÷ 70° C |
| Zasilacz | YES, 24W (for transmitter and IP camera) | YES, 24W (for transmitter) |
| Ochrona portów | 8kV | 8kV |
| W zestawie | – Wireless module CDS-EasyIP or CDS-EasyIP / SMA – 48V power supply – Cable ties x 2 pcs. – Instructions and CE certificate | – CDS-EasyIP eco wireless module – 48V power supply – Cable ties x 2 pcs. – Instructions and CE certificate |
Selection of devices
Examples of selection of radio units from the CDS-EasyIP xx family of wireless devices
- For one point-to-point bridge you need 2 (two) radio units (1x Tx and 1x Rx)
- You need 3 units (2x Tx and 1x Rx) for two bridges from the same direction
- For four bridges from the same direction you need 5 units (4x Tx and 1x Rx)
- For two bridges from different directions you need 4 units (2x Tx and 2x Rx)
- For three bridges from different directions you need 6 units (3x Tx and 3x Rx)
