iConstruction-CAM x25 – camera for construction site
Remote construction site supervision from any place in the world - observation 360° in range over 200m
- LTE camera with limitless range – thanks to 4G/LTE technology it is possible to view a video online from anywhere, via Internet
- PTZ 360 and optical zoom in 100m range allows checking every corner on a construction site
- Smooth HD video and a PTZ controls – the system transmits a smooth HD video and allows to control PTZ remotely with minimal delay via 4G/LTE GSM
- Livestreaming on a computer, smartphone, and TV in your office – you can watch a video from the cameras set up all over the country on any computer, smartphone, NVR recorder or HDMI receiver – iCAM-TVRec.
- Automatic images archiving – up to 10 days back, thanks to built-in memory
Mobile CCTV system with LTE GSM, 230V and emergency battery.
It is a solution that allows remote supervising of construction areas and remote camera control even from a distant office in another city. The managing and persons have access to high-quality HD video from cameras located in different parts of the country. This video can be recorded locally in the camera or remote CCTV monitoring recorder.
With iConstruction-CAM, supervision and monitoring of several construction projects in different parts of the country is not a problem. The device allows you to reduce the number of necessary trips to a minimum and to control the work of subcontractors and to save time and money. Rotary cameras with a big zoom and remote access help to eliminate a lot of irregularities in a short time.
Just hang the camera and connect to a 230V socket to get a smooth online view from anywhere in the world via the Internet or GSM.
iConstruction-CAM mobile cameras will provide live HD video to any place in the world where you will be able to display images on a computer, telephone, or even on TV in the office.
Remote construction supervision
Live view on any laptop, TV or smartphone.
The savings
thanks to fewer necessary trips and remote video monitoring of work progress
The mobility
iConstruction-CAM may be moved to different place fast and easily
Better works punctuality
and no fines for delays
The security
the employees and the building materials protection
Video recording and documentation of works progress
Documentation of the most important construction actions and the quality of used Saving the video and documentation of works progressmaterials. Saving of 10 days of recordings.
Time Lapse
iConstruction-CAM TimeLapse allows to create a time-lapse movie from a few months of work progress.
Video on www website.
Display videos live even for 10 000 viewers at once – extension option.
Monitoring the time and quality of work of subcontractors
You will know:
- what materials were used,
- whether the reinforcement and structures are properly made,
- whether the works are carried out on time,
- whether all procedures and standards have been maintained,
- whether the safety of employees and bystanders is ensured.
From another city, you can check if the road edges or pavement are evenly laid,
- whether deep excavations require additional security,
- whether materials built at the other end of the square are properly secured,
- whether weather conditions allow planned activities,
- whether subcontractors perform correctly commissioned works, etc.
4G/LTE 1xSIM
Smooth transmission of video and PTZ controls over LTE.
Wi-Fi
Option: Wi-Fi 2.4GHz, secured by WPA2-Enterprise encryption
Lightning installation.
Simple installation and dismantling via insertion into a special mechanical socket. Removal is secured with a padlock.
Recordings buffering - the video is archived all the time.
In the event of temporary loss of LTE wireless communication between iConstruction-CAM and a remote recorder, the missing recordings will be automatically synchronised in as soon as the communication returns. Useful function in the case of additional video recording on a remote recorder, e.g. in the office.
Emergency buffer power supply
18Ah buffer power supply that provides enough energy to keep unit running for at least 4 hours in case of sabotage or downed main power supply.
Very durable construction.
Duralumin construction with IP66 protection level.
Power supply: 100-240V AC
Supplied directly from 230V AC (for example via extension cord)
100% compatibility with any IP camera.
Transparent transmission guarantees full compatibility with any recorder and monitoring center. It is possible to connect with any IP camera.
Remote video monitoring of distant construction sites
Transmission over 4G/LTE enables live view and smooth PTZ control from any place. 4h of buffer power ensures continuous work even in case of power outage. System is compatible with any fixed-position or PTZ camera.
Below we are presenting only some features of iConstruction-CAM:
Power directly from 230V socket.
Emergency battery power supply for 4-6 hours.
7-10 days back video registration.
200m optical zoom.
High mobility of the system.
iConstruction-CAM series
Functionality and the most important parameters of iConstruction-CAM X25
Functionalyty of iConstructionCAM X25 system:
You can check it from anywhere in the world:
- quality and timeleness of work
- materials
- compliance with the project
- scope of work done
Additionally, you can:
- document key construction works, like reinforcement, concreting, etc.
- watch all work live within 200m of the camera
- protect the area during the day and at night – night laser illuminator with a range of 150m not visible to the human eye
- move the camera to new investement areas
Wszystko dostarczamy uruchomione:
Rotary camera iConstruction-CAM X25 for construction sites
- Technical specifications: 4G/LTE transmission, 1x SIM card socket, 1x LAN with PoE, powered from 230V AC, buffer battery for 4-6h continuous work, special mechanical socket for fast mounting on the pole or elevation, built-in battery changer, tightness class IP66.
- Video parameters: 2 Mpix 1080p, Day/Night, sensitivity: 0.005 Lux/F1.6 (color), 0.0005 Lux/F1.6 (B/W), optical zoom x25, IR 150m, h265+, lens: 4.8~120mm, AWB, AGC, ATW, BLC, HLC, EIS, 2D/3D DNR, WDR 120dB, RoI, Defog, IVS: Auto Tracking, virtual line crossing, intruder detection, face detection, photos with date and time, object appearance / disappearance.
- Standarized observation range: Event detection: 1613m, Observation: 646m, Recognition: 323m, Identification: 161m.
- Video recording in the camera: 10 days
- Working time on the battery itself: 4-6h
Set contains: iConstruction-CAM, PTZ camera x1, SD128GB card, antennas, mounting system GE-Mobile II x1, mounting accessories x1 szt.
Movie presents at 50s identical cameras in action, during night. https://www.youtube.com/watch?v=t8FZEZ8QBfI
Installation of camera is shown at 40s of movie. https://www.youtube.com/watch?v=ANArFFCJg-A

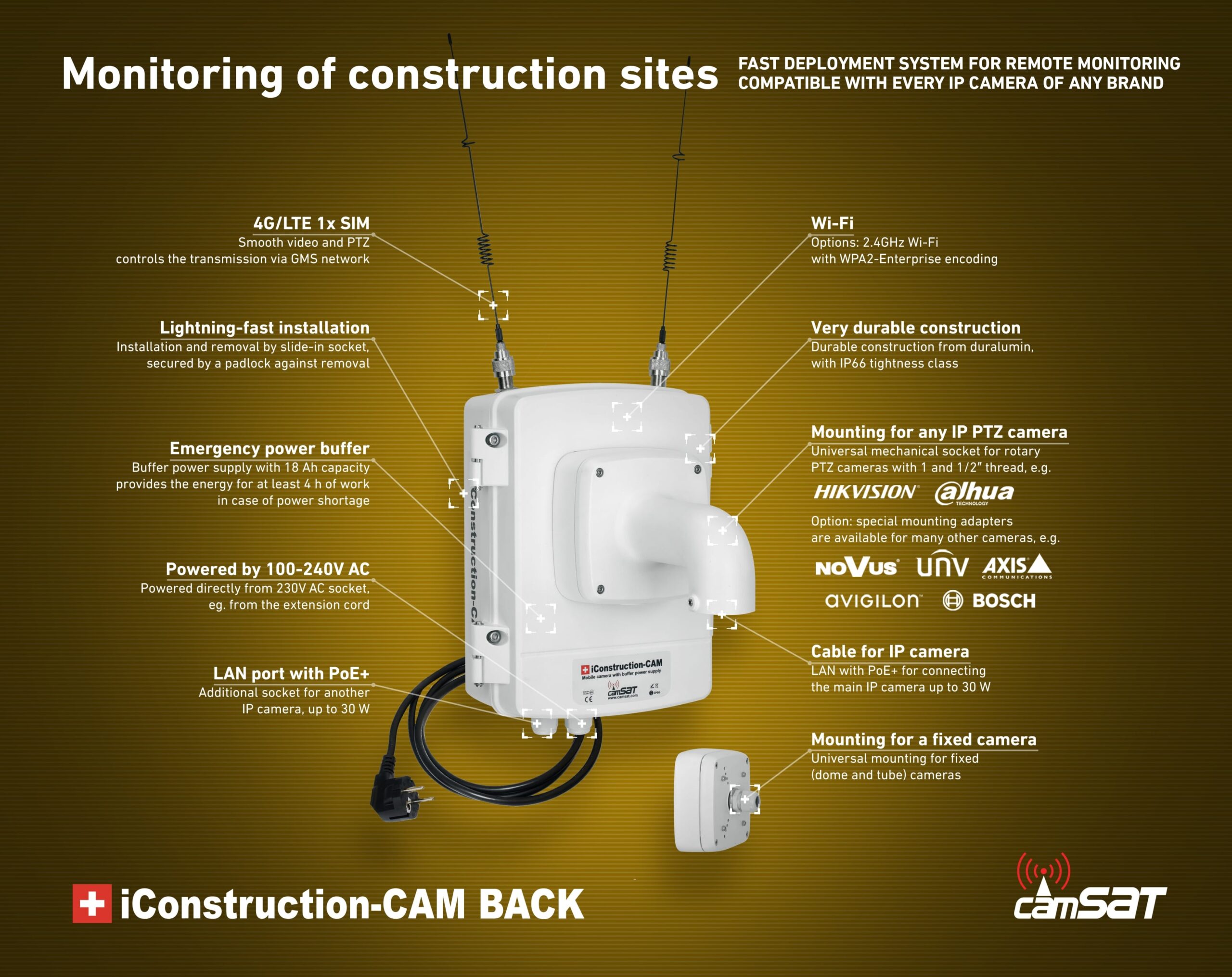

What is inside of iConstruction-CAM besides the HD camera?
| Resolution | HD 1080p 25fps |
|---|---|
| Optical zoom | 200m |
| Wireless communication | 4G/LTE |
| Emergency power supply | YES – for more than 4h (18Ah) |
| Horizontal / vertical observation angle | 0° ~ 360° / 0° ~ 90° |
| LAN port | YES – LAN with PoE (for another IP camera) |
| Lightning sensivity | 0.005 lux |
| SIM ports | YES |
| Live view and controls | YES: the connection with the camera is done in the same way as in wired solution + cloud + VPN |
| Video recording | YES – 7 days (128GB) |
| Power supply | 230V (optional: 12V or 24V DC) |
| Construction | Vandal-resistant made from duralumin |
| Tightness | IP66 |
| Working temperature | -20°C – 55°C |
| Weight | 14.7 kg |
| Additional options | WiFi, any IP camera up to 8 Mpix, miniature cameras on the long cable, 3 directional cameras at one iConstruction-CAM; thermal imagers, cameras for recording time-lapse movies on construction sites, SIM cards with static IP and without data limits |
