iCAM-DefenderTower PowerMAX - System solarny 1350W + genset

iCAM-DefenderTower - Lightweight Rapid Deployment Mobile CCTV Tower - Image 10

iCAM-DefenderTower - Lightweight Rapid Deployment Mobile CCTV Tower - Image 11

iCAM-DefenderTower – Lightweight Rapid Deployment Mobile CCTV Tower

NEW 2024 - Rapid deployment CCTV tower with own power supply all year round

Continuous solar power with up to 1.35 kW capacity allows uninterrupted operation throughout the year, regardless of weather conditions.
Road-approved wheels equipped with wide wheelbase – over 150cm, ideal for rough terrain, steep inclines, and rapid, safe mobility.
Retractable / Sliding drawbar guards against towing – patented / reserved under numbers 015056994 and CAMSAT-3484-SP.
Mobile controller enables quick exchange of entire electronics between towers. Only the controller needs to be sent for servicing, significantly reducing maintenance costs and trips.
iCAM-OSD – Power parameters on camera image displays key tower, battery, and power parameters as text on the image of two IP cameras. Operator can observe 12 key parameters live.
iCAM-ECO in critical battery conditions, conserves energy by disabling 95% of electronics, significantly extending power outage protection time.
Tower position change detection in 3 planes protects the tower even after complete battery discharge and still notifies about an alarm
SafeStar, Kronos ensures 100% compatibility with any security software.
Wireless PIR sensors with a range of 1000m automatic PTZ camera approach to detection area.
Megaphone sound warnings automatically generated upon intrusion detection, playing MP3 file from megaphone with over 120dB.
Live audio warnings directly from remote operator.
Blue strobe light of the deterrent type POLICE that attracts more attention than blaring alarms
Green halogen lights 2x 110W modernly illuminating the area and highlight human contours
360-degree protection PIR sensors with 12m range around the tower.
Power according to programmed priorities and switching order:
- From 230V AC for fast charging, and upon 230V outage, seamless transition to solar power.
- Solar power with up to 3x460W capacity.
- Battery-powered space for 8 batteries of 200-220Ah each.
- Fuel cells automatically charge batteries for up to 30 days on one tank.
Analytics cameras 4-8Mpix with color night vision, AI, WizSense, and Deep Learning as standard.
Local video storage for 90 days and remote via Internet on NVR connected to the network.
Customizable size and configuration tower versions with the ability to mount own cameras and accessories in any configuration and equipment.

Compare

Categories: Rapid Deployment Towers iCAM-Tower, Remote monitoring of construction sites Tags: CCTV, protection, Tower, Wieża mobilna

Description

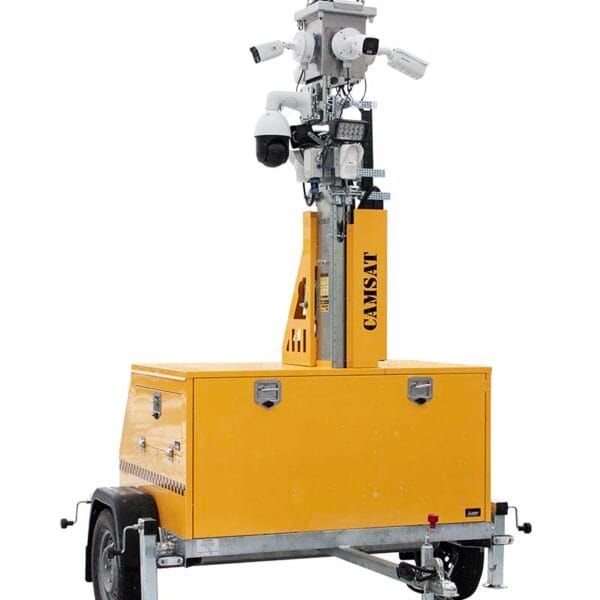

MOBILE SECURITY TOWER

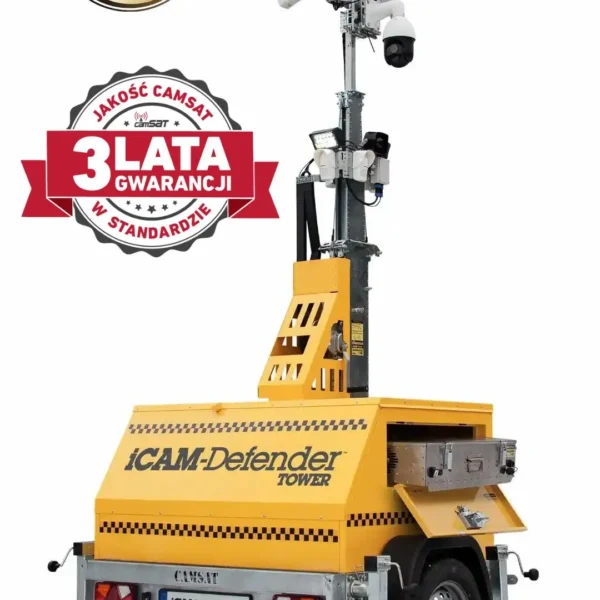

Discover the latest lightweight mobile towers from the iCAM-DefenderTower series

Discover iCAM-DefenderTower — the latest rapid deployment mobile tower, whose lightweight construction allows access to any terrain. Made from galvanized and painted automotive sheet metal, it guarantees 20 years of hassle-free operation. With space for 8 batteries and generators, it offers the reliability and performance of professional towers while being 20% cheaper than the competition. By choosing iCAM-DefenderTower, you get advanced technology at a very affordable price.

iCAM-DefenderTower is an innovative, mobile, and autonomous tower specifically designed for perimeter protection using CCTV monitoring systems. It serves as a reliable remote monitoring point for distant areas, offering comprehensive security solutions for any location. The autonomy and intelligent features of the iCAM-DefenderTower enhance security and surveillance in places where a constant physical security presence is difficult or impossible. It is an effective and economical alternative to traditional security methods, ideal for construction sites, photovoltaic farms, and warehouses, providing efficient supervision and immediate threat detection information.

RETRACTABLE / SLIDING DRAWBAR UNDER THE CHASSIS

The latest, specialized, reinforced tower chassis

iCAM-DefenderTower introduces a new generation of transport chassis with road approval, allowing movement on roads throughout Europe. The specially designed chassis maximizes durability and safety, offering reinforced structures, a wide wheelbase, and stability even in extreme terrain conditions. Additionally, the retractable and sliding drawbar under the chassis secures the tower against towing or theft, ensuring that once set up at the monitoring site, the tower remains inaccessible for unauthorized movement. Besides mechanical safeguards, the tower is equipped with a range of advanced electronic security measures, including door open detection, tilt and rotation sensors, PIR motion sensors, and cable disconnection detection, enhancing its protective efficiency in demanding locations such as construction sites

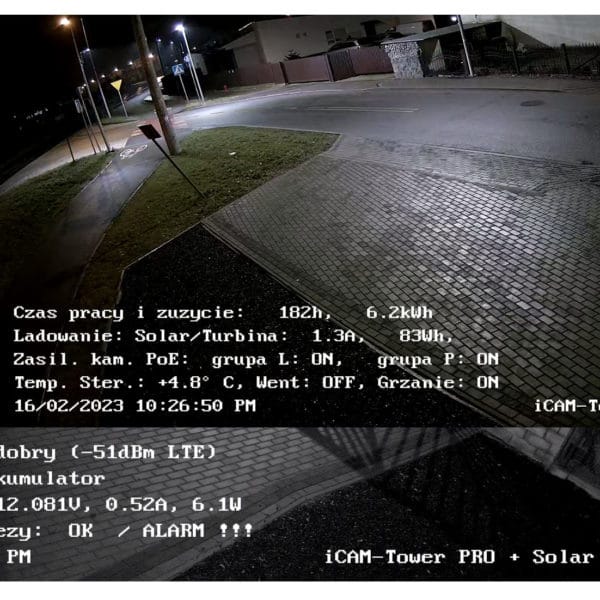

WE DISPLAY THE BATTERY LEVEL ON THE IMAGE OF ONE OF THE CAMERAS

THE MOST IMPORTANT PARAMETERS OF THE TOWER AND POWER SUPPLY ARE DISPLAYED DIRECTLY ON THE SCREEN OF ONE OF THE CAMERAS AS TEXT OVERLAY.

iCAM-OSD is a breakthrough solution that allows the display of key battery and power parameters directly on the screen of two IP cameras. The tower parameters are presented in the corner of the image as text, enabling the operator to continuously monitor the status and predict potential threats to the tower’s operation, significantly increasing the safety and efficiency of surveillance. The displayed data includes battery charge level with critical notifications, power status, current charging status from renewable energy sources, current power consumption by devices in the tower, as well as position change detection and GSM/LTE signal strength. Each of these parameters is also recorded along with the video footage, allowing for later playback and data analysis.

iCAM-OSD - device parameters in the image of IP cameras

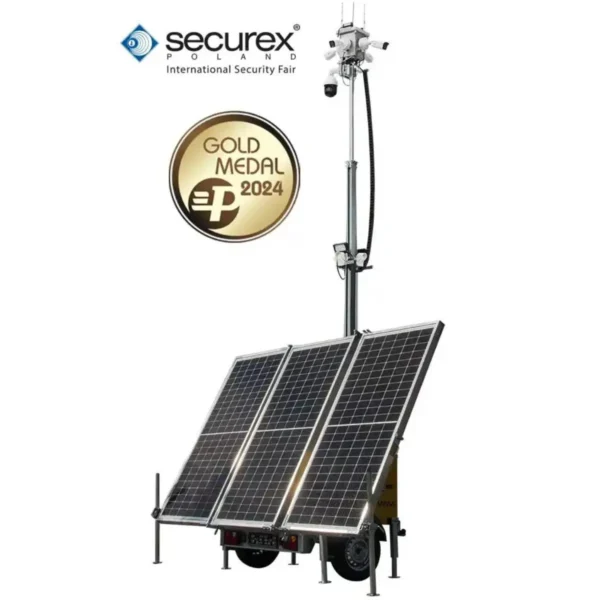

iCAM-Solar365 T1350W

YEAR-ROUND SOLAR POWER SUPPLY 3x460W

The number of panels you have connected doesn't matter, only the total power they can produce. 2000W from panels plus 400W from a turbine provides a significant amount of energy, which is especially needed during the autumn and winter months. A 400W wind turbine and the latest PRO 2023 controller will manage and shut down unnecessary modules at the appropriate time to ensure the tower operates 24/7 throughout the year.

1350W PANEL POWER

Three large, foldable panels with a power output of 460W each ensure exceptionally fast battery charging during the autumn and winter months, guaranteeing uninterrupted operation and efficiency throughout the year.

PROTECTION AGAINST STONES

The foldable design is protected by a special aluminum plate, which safeguards the glass panels from damage caused by stones kicked up by vehicle wheels during transport

DOUBLE EDGE PROTECTION

A 70-millimeter crumple zone around each panel effectively protects against damage from collisions, such as with construction vehicles, providing additional protection and durability.

THREE ENERGY-SAVING MODES CONTROLLED BY AN APP

The PRO controller informs the user, shuts down appropriate modules, and manages power, ensuring that the tower always has the necessary energy to operate throughout the year.

The iCAM-ECO mode saves energy during critical battery states by shutting down individual, power-hungry modules of the tower. When low battery levels are detected (below 20%), the tower begins by shutting down the PTZ camera, followed by other modules and cameras. The system retains the essential cameras and microphone operational even at very low battery levels, ensuring continued monitoring and control of the site for several more hours. The operator can also manually switch tower modules on and off using a mobile app or from Alarm Management Systems such as Safestar or Kronos.

TOWER PROTECTION EVEN WITHOUT POWER

We protect the valuable tower even after power loss.

Even with the complete discharge of the main batteries, the tower and its surroundings remain protected within a 12-meter radius by an additional alarm system with its own power supply. This system provides full protection for an additional 6 hours, allowing the operator remote access via GSM/LTE. This feature ensures that the tower is secured for many hours after battery depletion.

MOBILE TOWER WITH APPROVED CHASSIS AND RETRACTABLE DRAWBAR

Rapid Deployment CAMSAT Towers - Easy to Transport and Deploy

Safety comes first

Our mobile towers are equipped with exceptionally strong supports with a load capacity of up to 1350 kg each, allowing the entire structure to be lifted so that the tires are raised at least 50 mm off the ground. This not only protects the tires from degradation when the tower remains in one place, but it also ensures 100% safety for you and your workers.

Very wide 150cm wheelbase

Our wide wheelbase design ensures stability and secure transport, even on uneven terrain, at high speeds, and in strong side winds.

Extremely strong construction

Our mobile towers, equipped with four 68 kg batteries each, are designed for the toughest conditions. Each chassis, far from standard solutions found in building supply stores, is specially reinforced for maximum loads and a GVW of 750 kg. Perfect solidity, even on the most demanding construction sites.

DAHUA CAMERAS, HIKVISION CAMERAS, AXIS CAMERAS OR BOSCH CAMERAS - YOU DECIDE

RAPID DEPLOYMENT TOWER EQUIPMENT

STANDARD ALWAYS PRO

Camsat is the undisputed leader in the production of mobile towers. We offer various models of towers, equipped with cameras of any brand and specifications. Standard equipment always includes the PRO series, featuring proven AI AcuSense / WizSense camera models and the best alarm control panel on the market, Satel Integra, which is fully compatible with any Alarm Monitoring Center.

Cameras recognizing faces, humans, or vehicles.

Five cameras, including a PTZ camera with a range of 200m. All images are managed by artificial intelligence, which detects the shape of a human and the shape of a vehicle. Motion detection in the monitored area is always confirmed with information whether it is a human, vehicle, animals, or other detections. If you have your own cameras, we will use what you propose or provide in the tower.

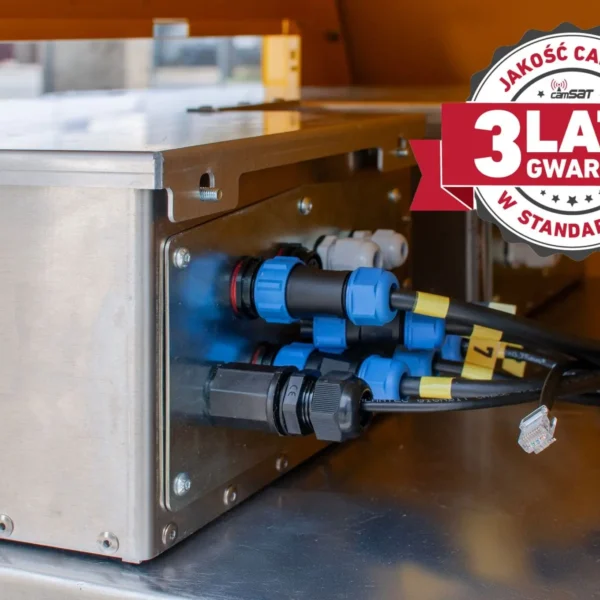

Mobile controller in CAMSAT towers

Have you ever calculated how much annual service trips or unplanned tower transport cost? All CAMSAT towers are equipped with a mobile controller containing nearly 100% of the electronics. In case of damage, you send only the box to the service by courier or replace it with another tower in a few minutes. This can be done by anyone, even without technical knowledge. All cables are terminated with industrial connectors, appropriately numbered, and physically coded to prevent mistakes.

SafeStar, Kronos, Dahua, Hikvision... 100% compatibility

CAMSAT towers are 100% compatible with the most popular Alarm Monitoring Stations in Europe. Communication protocols such as SIA-IP, Satel, Hikvision, Dahua, Bosch, and Axis ensure full compatibility with security company software

Green LED lighting 2x 110W

Optionally, mobile towers can be equipped with green LED illuminators. The appropriate wavelength of green light and the high power of 2x 110W effectively and pleasantly illuminate the area around the tower. The tower can be equipped with green illuminators with the following power options: 110W, 200W, 240W, and 300W.

3D Tower Position Detection

In addition to the alarm system, the tower is secured with a specially designed 3D position sensor. It monitors changes in position along three axes, so even a slight rotation of the tower triggers the alarm and sends a notification to the alarm center. Additionally, the tower is equipped with GPS, a shock sensor, and 4 PIR sensors that secure the tower in the approach zone within a 12-meter radius.

Police-type blue strobe light

Deter instead of going to court and proving guilt. The blue strobe light will automatically activate when approaching the tower or detecting a break-in and sabotage. The sudden and strong “police” light attracts much more attention from the surroundings than a car alarm, making it highly effective.

SECURITY NOTIFICATION AND LIVE VIEW

Intuitive operation and full compatibility

CAMSAT towers are equipped with the latest CCTV cameras from brands such as Hikvision, Dahua, Bosch, or Axis, and the Satel Integra alarm system. This allows users to manage the tower using 100% compatible and original software from these companies.

Thanks to the integration of CAMSAT towers with these devices, users can be confident that their monitoring system is comprehensive and offers the highest reliability. Additionally, the original software enables convenient and effective tower management and integration with any Alarm Monitoring Center.

Live Camera View

All images from the towers will be displayed live on your laptop, phone, or even on your TV. Free apps and programs are available for all devices and operating systems: Windows, Mac, iOS iPhone, and Android.

On your phone with an app like Hik-Connect, iVMS-4500, DMSS
On your computer:
- via web browser,
- iVMS-4200, Smart PSS programs,
- any VMS software for CCTV cameras, such as Milestone, Bosch VMS
At the Monitoring Center with systems like Safestar or Kronos
On your TV using an internet receiver with HDMI output

Control Like a Smart Home

One of the most reliable applications for managing smart properties that we use in iCAM-Tower ensures full monitoring and control from anywhere in the world.

Manually or automatically:

Activate the tower and arm all 4 security zones
Turn on the megaphone with a warning message in Polish or English
Activate white LED lighting or GreenLED lighting
Activate the deterrent blue Police strobe light
Activate iCAM-ECO energy-saving mode
Remotely turn off part of the camera or other tower modules to save power
Receive PUSH notifications about alarms and motion detection in the tower area
Receive PUSH notifications about the last <15% and <5% energy levels in the tower batteries
Receive information about motion detection in the cameras
Activate standby mode and receive information about detection from iWirelessPIR wireless sensors

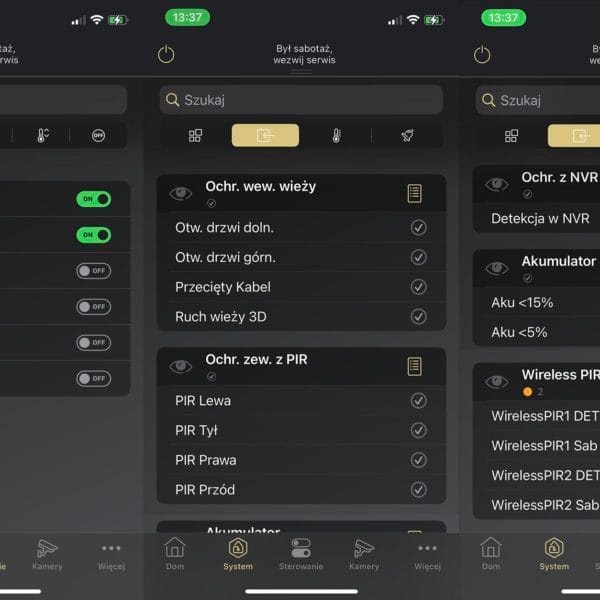

Application for Integra Satel mobile protection towers

Powiadomienie ochrony

Wieżami monitorowania produkowanymi przez CAMSAT zarządzają najczęściej systemy alarmowe Satel Integra oraz kamery Hikvision lub Dahua co gwarantuje 100% kompatybilności z dowolnym systemem Ochrony. Analityka z kamer IP jak i wszystkie alarmy wysyłane są na żywo do Agencji Ochrony i przetwarzane w ich systemie Monitorowania Alarmów np. Safestar lub Kronos.

24/7 Technical Support CAMSAT

With over 20 years of experience, we design devices to be maximally intuitive, easy to use, and to fulfill the most important functionalities in the industry. We are at your service 24 hours a day, 7 days a week

The CAMSAT company’s 24/7 technical support department provides effective support for the company’s products. Online technical support and 24/7 technicians ensure that your devices will always function properly.

CAMSAT'S MOBILE MONITORING TOWER AWARDED THE GOLD MEDAL AT MTP 2024

“With great pride and joy, we announce that our CAMSAT mobile monitoring towers have been awarded the Gold Medal at MTP 2024. The award ceremony took place during the inauguration of the International Security Exhibition SECUREX 2024. We are deeply grateful for this prestigious recognition, which confirms our commitment to delivering innovative security solutions.

Technical parameters
